SECOND-ROW SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION

id091300988200

Passenger-side second-row seat slide adjuster

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the second-row seat(passenger-side).(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

3.  Remove the second-row seat side cover.(See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

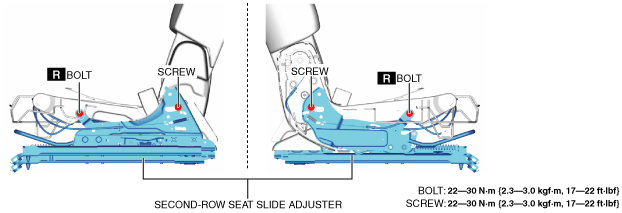

4.  Remove the bolts and screws.

ac9uuw00009489

5.  Remove the second-row seat slide adjuster.

6.  Install in the reverse order of removal.
