REAR SPOILER REMOVAL

id091600802500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

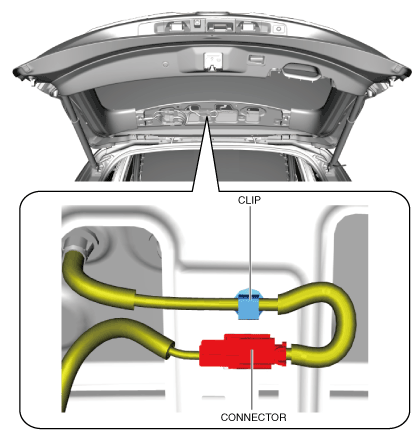

3.  Disconnect the connector.

ac9uuw00006966

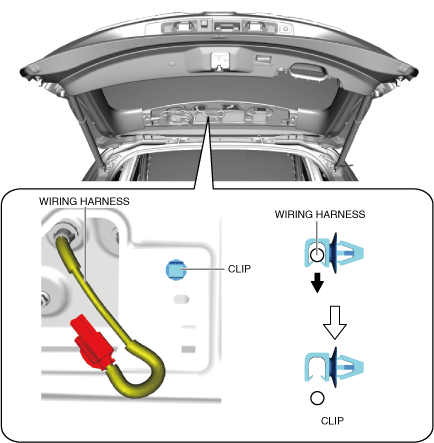

4.  Remove the wiring harness from the clip.

ac9uuw00006967

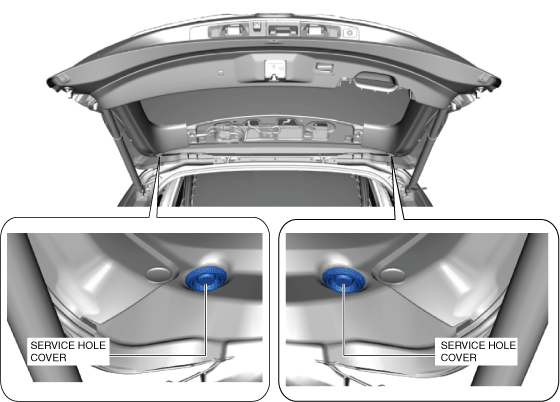

5.  Remove the service hole covers.

ac9uuw00006968

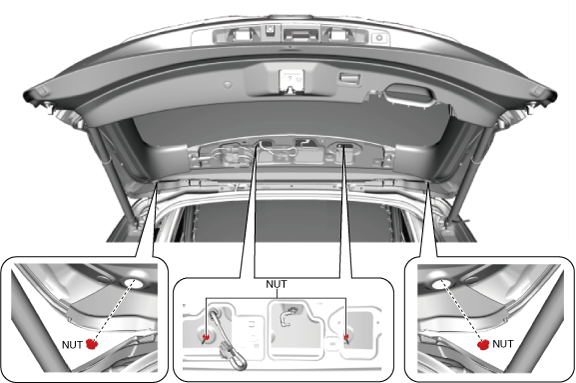

6.  Remove the nuts.

ac9uuw00006969

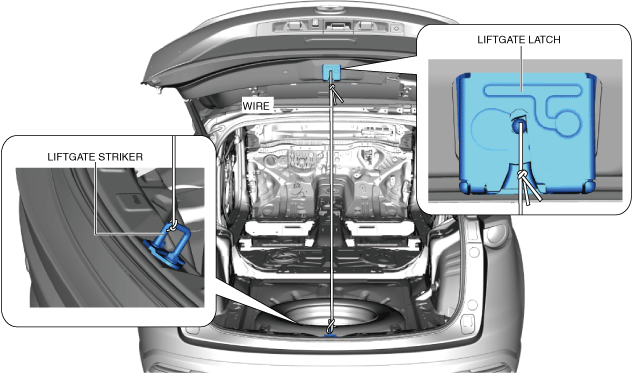

7.  Attach a piece of wire between the liftgate striker and liftgate latch to hold the liftgate in the half-opened position as shown below.

ac9wzw00004462

Warning

•  Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

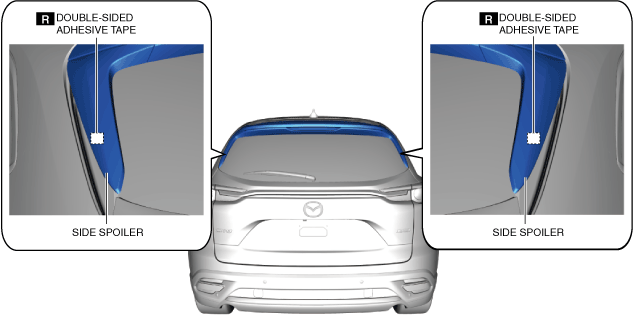

8.  Peeling off the double-sided adhesive tape shown in the figure using a utility knife.

ac9uuw00006973

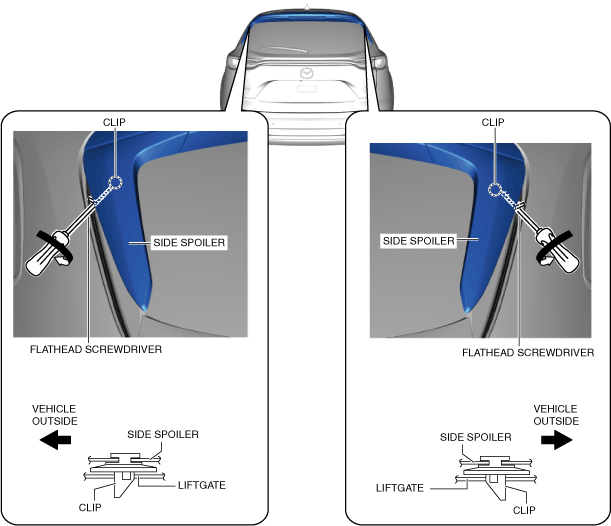

9.  Insert a flathead screwdriver into the position shown in the figure, move it in the direction of the arrows and detach the side spoiler clips.

ac9uuw00006974

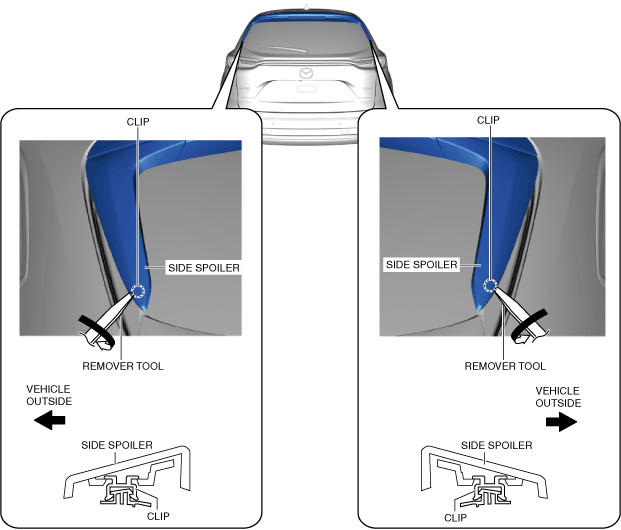

10.  Insert a remover tool into the position shown in the figure, move it in the directions of the arrows and detach the side spoiler clips.

ac9uuw00006975

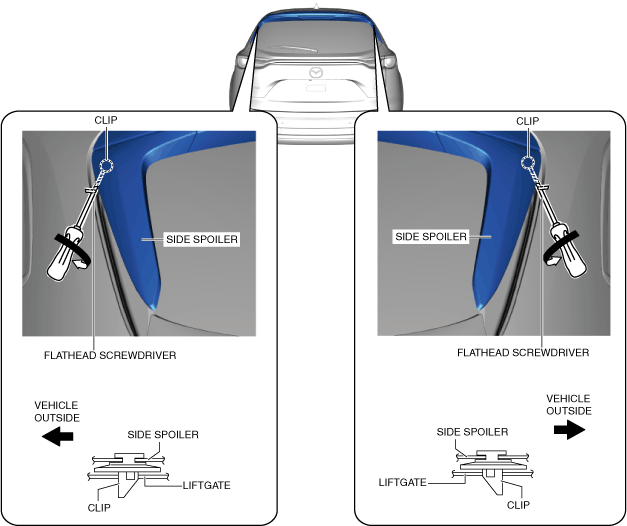

11.  Insert a flathead screwdriver into the position shown in the figure, move it in the direction of the arrows and detach the side spoiler clips.

ac9uuw00006976

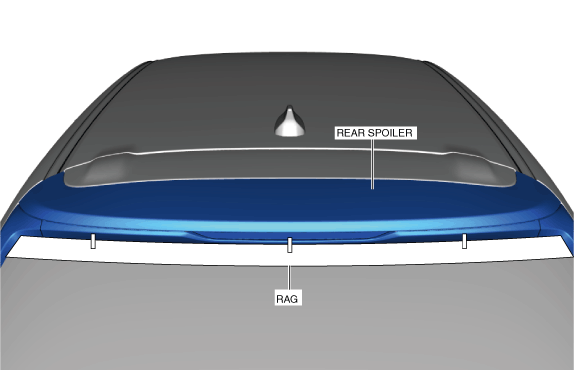

12.  Affix rag using tape to the position shown in the figure.

ac9wzw00005353

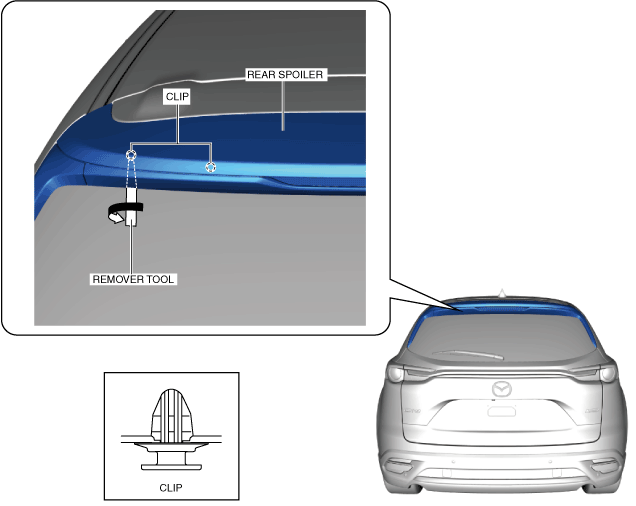

13.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the rear spoiler clips.

ac9uuw00006978

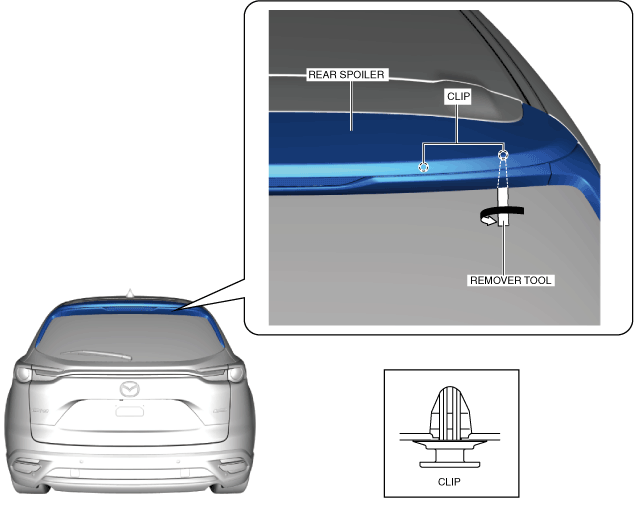

14.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the rear spoiler clips.

ac9uuw00006979

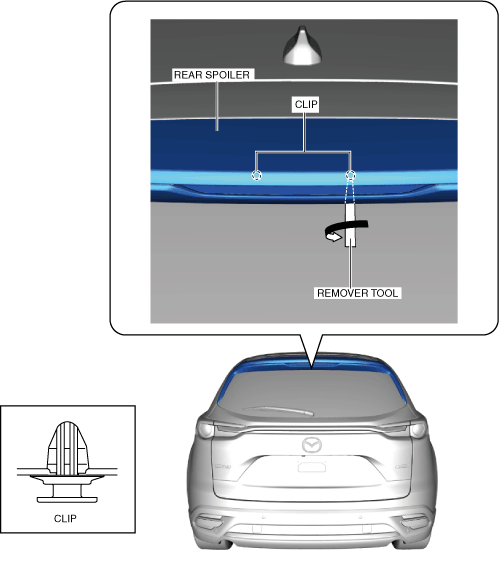

15.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the rear spoiler clips.

ac9uuw00006980

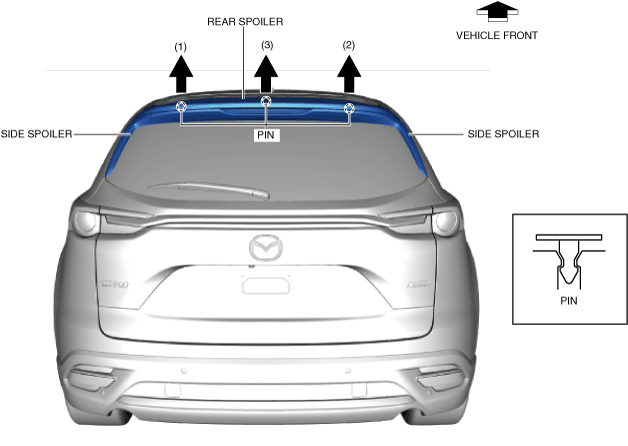

16.  Pull the rear spoiler in the order of the arrows shown in the figure and detach the rear spoiler pins from the liftgate.

ac9wzw00004768

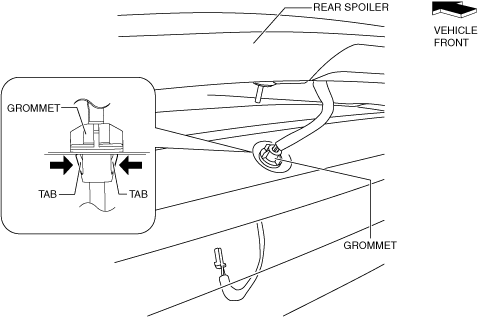

17.  While holding the rear spoiler by hand, press the tabs of the grommet from the underside of the liftgate shown in the figure, and disengage the grommet tabs from the liftgate.

ac9wzw00005354

18.  Remove the rear spoiler and the side spoiler as a single unit.

19.  Remove the side spoilers. (See SIDE SPOILER REMOVAL.)

20.  Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
