HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Rear spoiler (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

3.  Side spoiler (See SIDE SPOILER REMOVAL.) (See SIDE SPOILER INSTALLATION.)

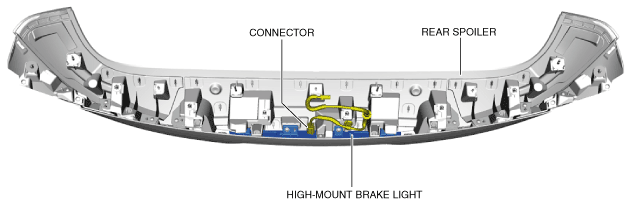

3.  Disconnect the connector.

ac9uuw00007154

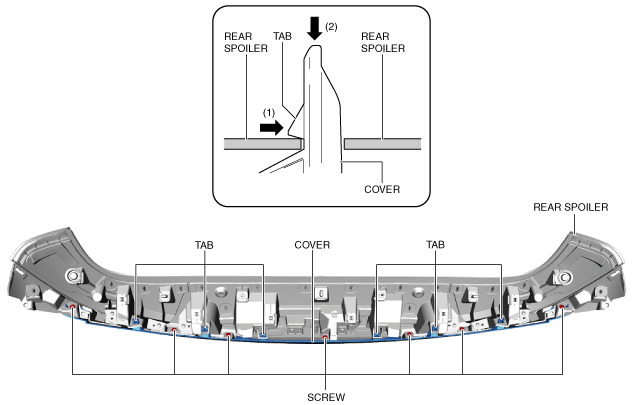

4.  Remove the screws.

ac9uuw00007155

5.  While pressing the cover tab in the direction of arrow (1) shown in the figure, press the cover in the direction of arrow (2) shown in the figure, and detach cover tab from the rear spoiler.

6.  Detach all tabs of the cover from the rear spoiler and remove the cover.

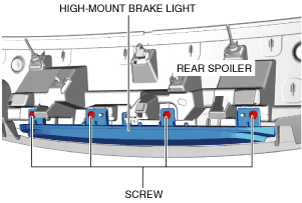

7.  Remove the screws.

ac9uuw00007156

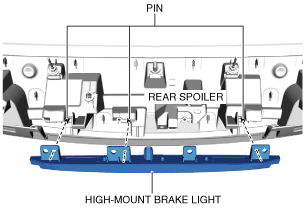

8.  Remove the high-mount brake light.

ac9uuw00007157

9.  Install in the reverse order of removal.
