REAR SPOILER INSTALLATION

id091600802600

1. When a rear spoiler is to be reused, perform the following procedure:

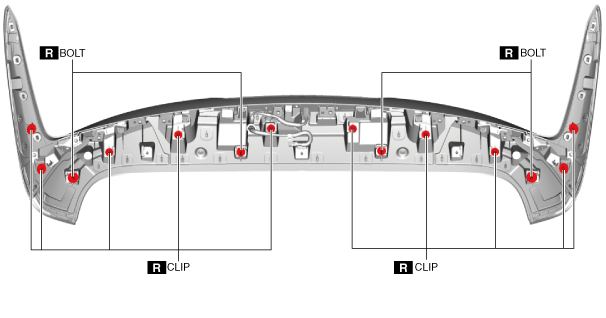

(1) Replace the clips and bolts shown in the figure with new ones.

ac9wzw00004463

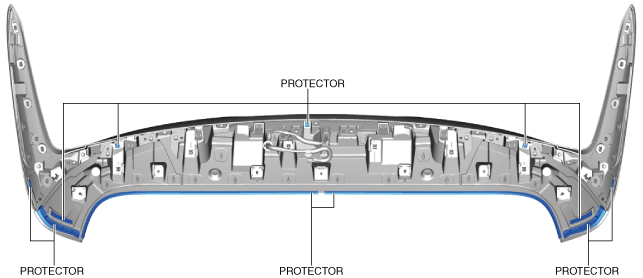

(2) If the protector is damaged, replace the part that is damaged with a new protector.

ac9wzw00004464

2. If a liftgate spoiler clip has been damaged, perform the following procedure:

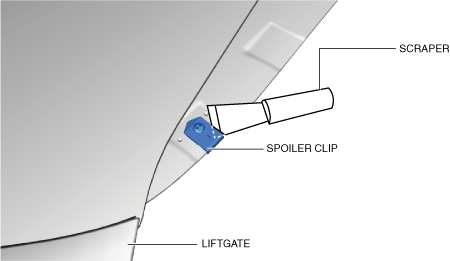

(1) Using a scraper, peel off the spoiler clip from the liftgate.

Note

• If double-sided adhesive tape remains on the liftgate, warm the tape using a heat gun and then remove it using a resin spatula.

ac9uuw00006987

(2) Remove any grease and dirt from the spoiler clip affixing area on the liftgate.

(3) Peel off the backing of the double-sided adhesive tape.

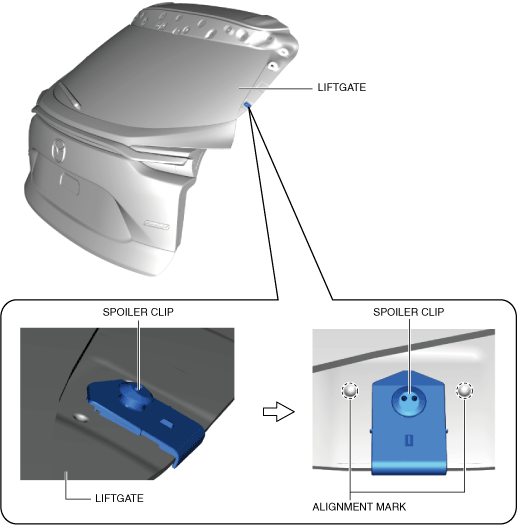

(4) While holding the spoiler clip flange against the hem of the liftgate, affix it between the alignment marks shown in the figure.

ac9wzw00004774

(5) Press the contact point using fingers and apply pressure to the spoiler clip to affix it to the liftgate.

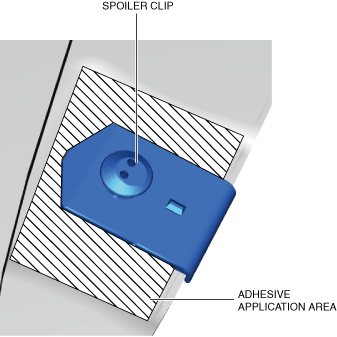

(6) Apply adhesive to the area shown in the figure.

ac9uuw00006989

• Use pando 156A-type adhesive agent or equivalent.

• Follow the instructions for the product being used to determine the adhesive drying time.

3. Install the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

4. Install the side spoiler. (See SIDE SPOILER INSTALLATION.)

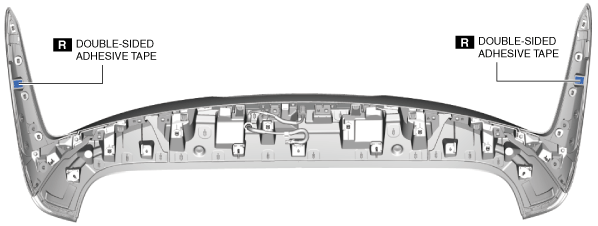

5. Peel off the backing of the double-sided adhesive tape.

ac9wzw00004465

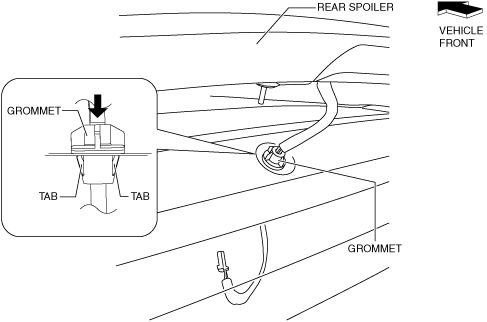

6. Install the grommet of the high-mount brake light wiring harness.

ac9uuw00006993

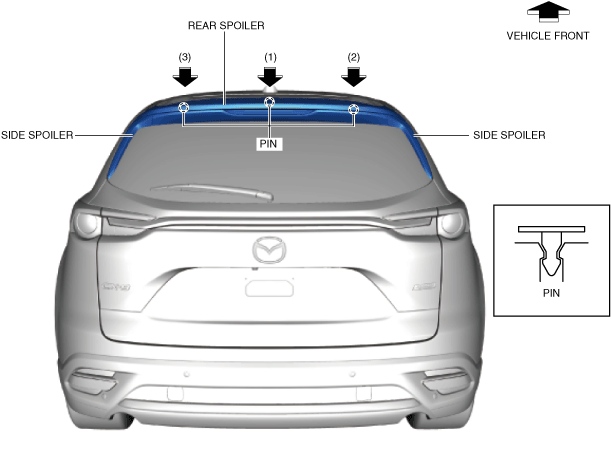

7. Press in the rear spoiler in the direction of the arrows shown in the figure and install the pins to the liftgate.

ac9wzw00004775

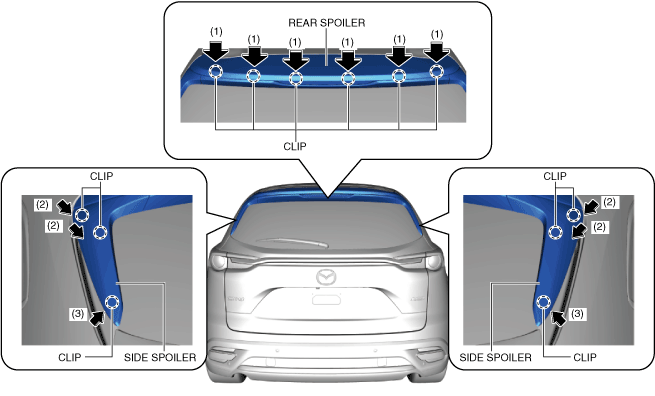

8. Press in the rear spoiler in the direction of the arrows shown in the figure and install the clips to the liftgate.

ac9uuw00006995

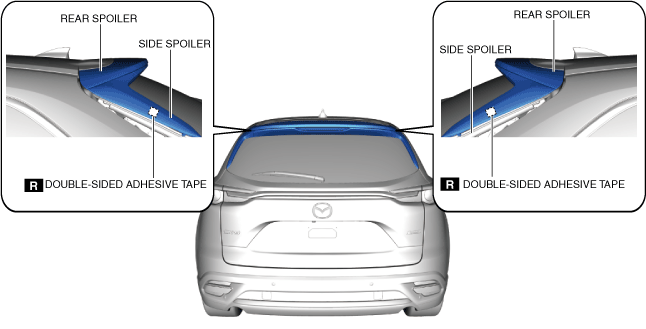

9. Press the side spoiler to adhere the double-sided adhesive tape.

ac9wzw00004466

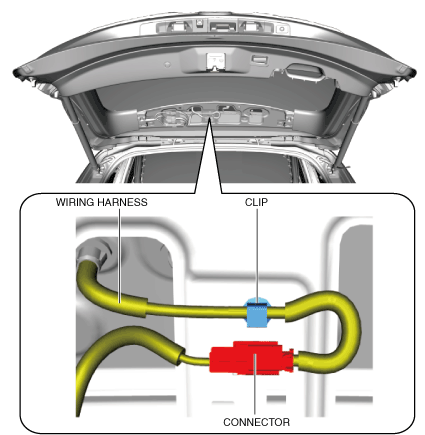

10. Install the wiring harness to the clip.

ac9uuw00006997

11. Connect the connector.

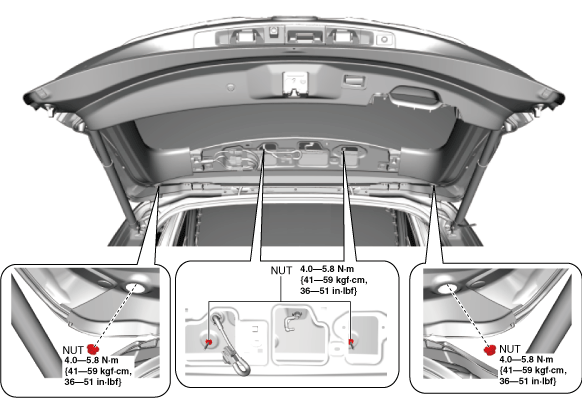

12. Install the nuts.

ac9uuw00006998

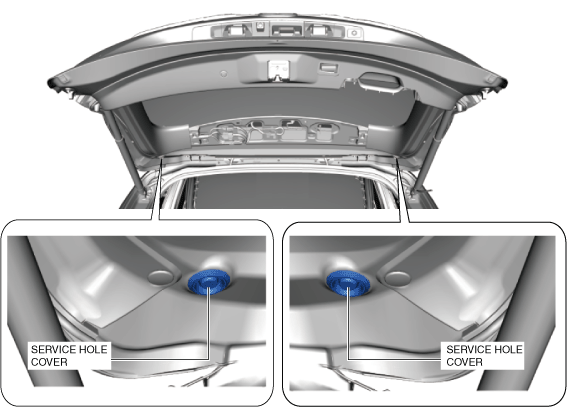

13. Install the service hole covers.

ac9uuw00006999

14. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
