FRONT MUDGUARD REMOVAL/INSTALLATION

id091600812300

1.  Remove the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

2.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

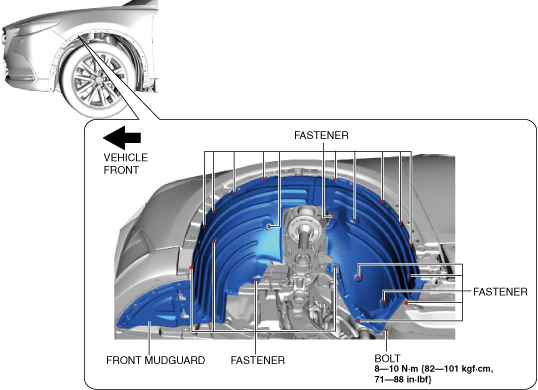

3.  Remove the bolt and fasteners.

ac9wzw00004472

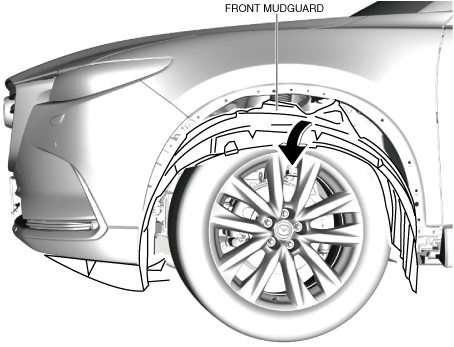

4.  Pull the front mudguard in the direction of the arrow shown in the figure and remove it.

ac9uuw00006958

5.  Install in the reverse order of removal.
