FRONT DOOR GARNISH INSTALLATION

id091600968400

1.  Remove any grease or dirt from the adhesion surface of the front door.

2.  Peel off the backing from the double-sided adhesive tape.

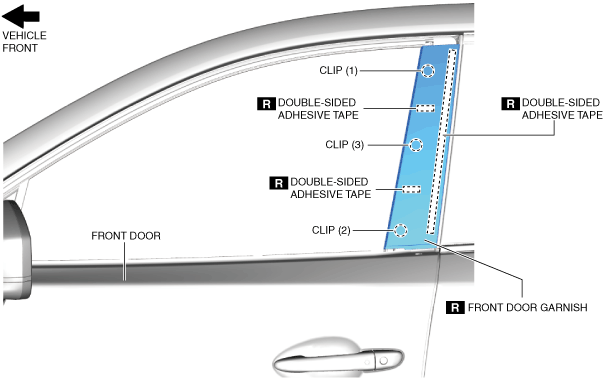

3.  Install the front door garnish clips in the order shown in the figure.

ac9wzw00003948

4.  Press the front door garnish to adhere the double-sided adhesive tape.

5.  Peel off the protective film on the front door garnish. (With protective film)

6.  Install the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

7.  Install the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)
