FRONT DOOR GARNISH REMOVAL

id091600968500

1.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

2.  Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

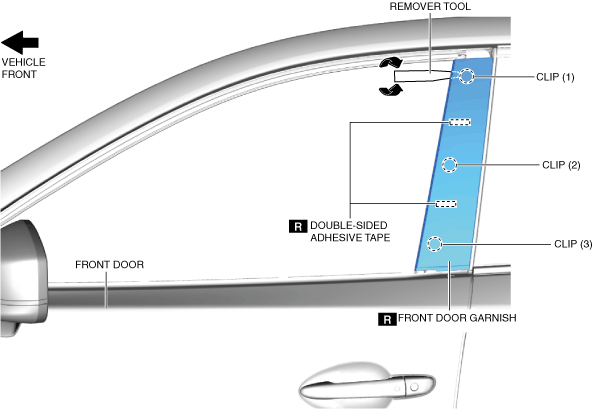

3.  Move the remover tool in the direction of the arrows shown in the figure and while peeling off the double-sided adhesive tape, detach the front door garnish clips (1), (2) and (3) from the front door starting from the top of the vehicle.

ac9uuw00006871

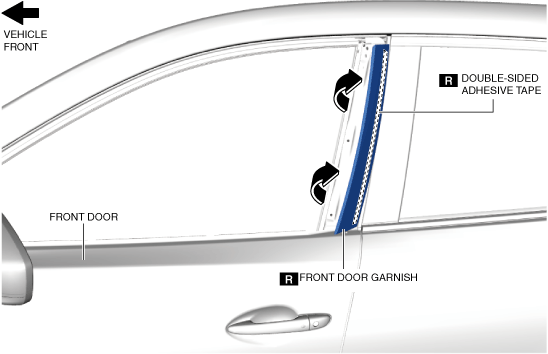

4.  Move the front door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.

ac9uuw00006872

5.  Remove the front door garnish.
