VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700601800

Caution

•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

Side Ventilator Grille

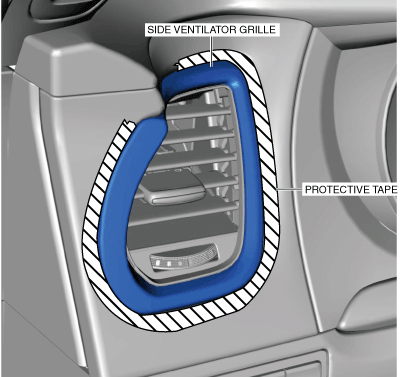

1.  Affix protective tape to the position shown in the figure.

ac9wzw00004784

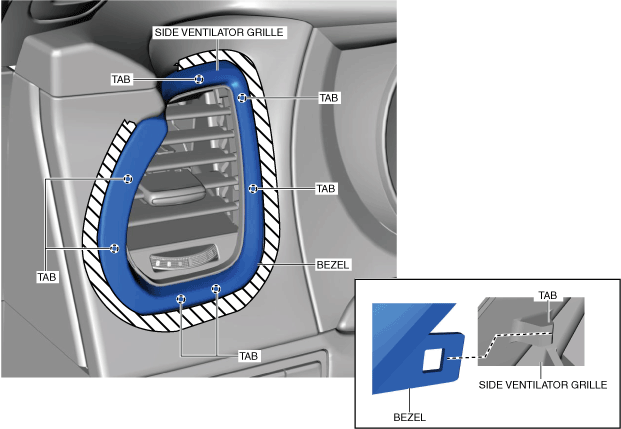

2.  Using the remover tool, release the ventilator grille tabs at the positions shown in the figure and remove the bezel.

ac9wzw00004785

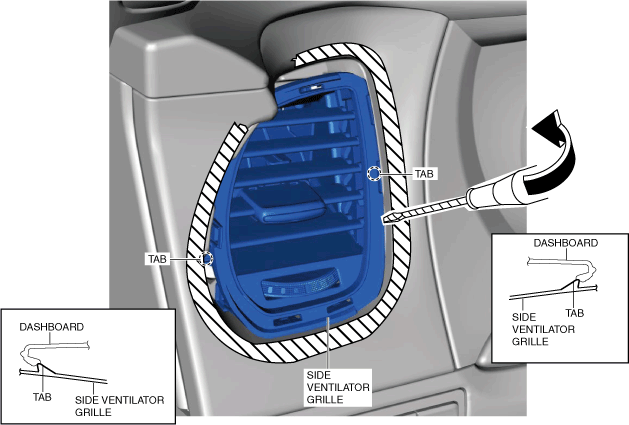

3.  Insert the tape-wrapped flathead screwdriver into the position shown in the figure, move the side ventilator grille in the direction of the arrow shown in the figure, and remove the tabs from the dashboard.

ac9wzw00004786

4.  Remove the side ventilator grille.

5.  Install in the reverse order of removal.

Center Ventilator Grille

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

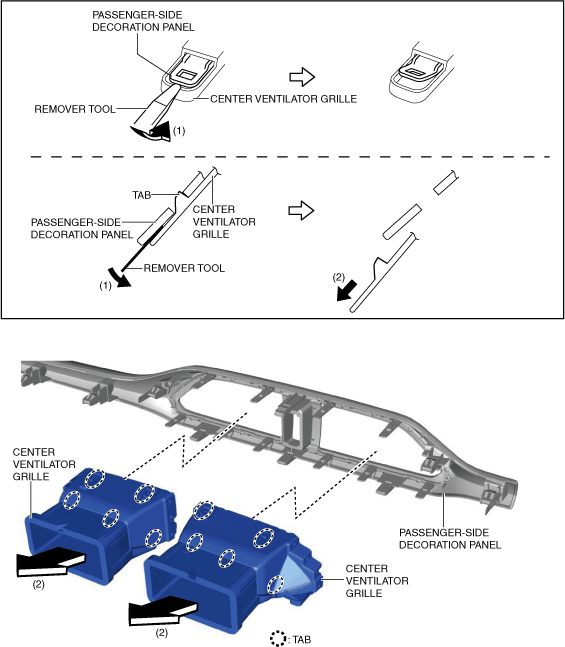

4.  Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the tabs from the passenger-side decoration panel.

ac9wzw00003574

5.  Install in the reverse order of removal.

Rear Ventilator Grille

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the rear climate control unit. (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)

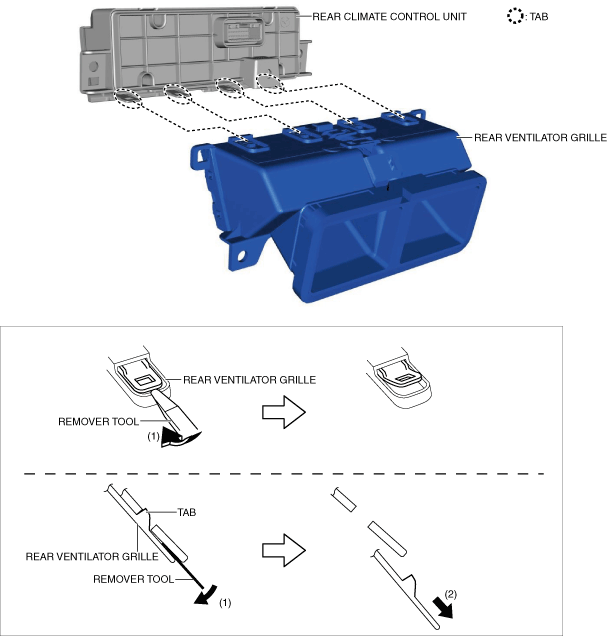

4.  Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the tabs.

ac9wzw00005549

5.  Install in the reverse order of removal.
