B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700602800

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

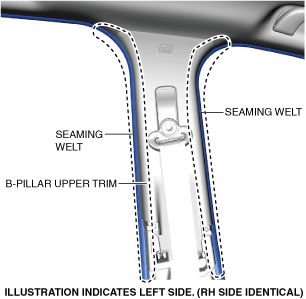

2.  Partially peel back the seaming welts.

ac9wzw00004788

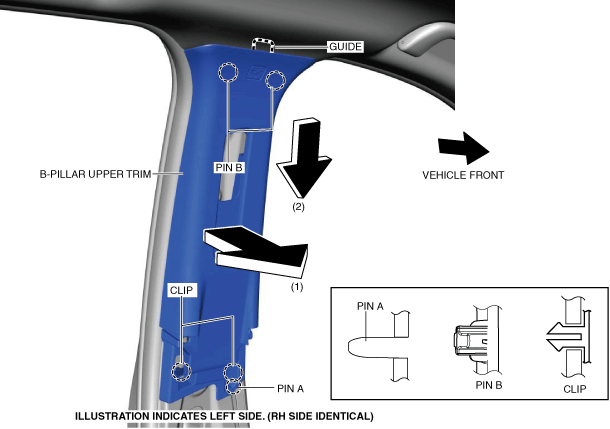

3.  Pull the B-pillar upper trim in the direction of arrow (1) while detaching the clips, pin A, pins B.

ac9uuw00005569

4.  Remove the B-pillar upper trim in the direction of arrow (2) shown in the figure while detaching the guide.

5.  Install in the reverse order of removal.
