TRUNK END TRIM REMOVAL/INSTALLATION

id091700604300

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

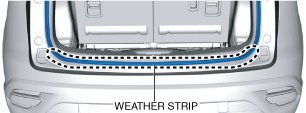

2.  Partially peel back the weather strip.

ac9uuw00005412

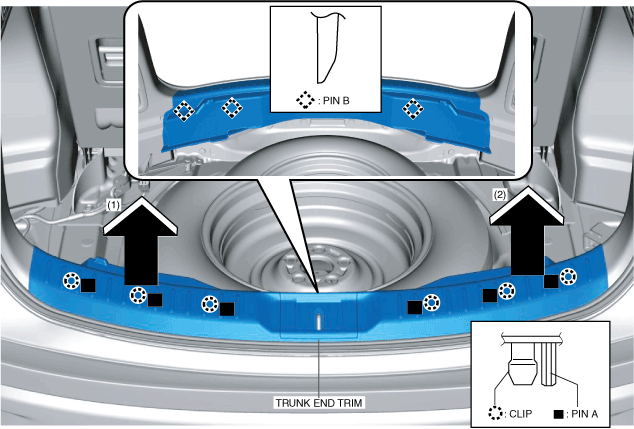

3.  Pull the trunk end trim in the direction of the arrow in the order of (1), (2) and remove it while detaching the clips, pin A and pin B.

ac9uuw00005413

4.  Install in the reverse order of removal.
