FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

1.  Turn the steering wheel in the direction opposite to the side on which the light is to be removed.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Partially peel back the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

4.  Partially peel back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

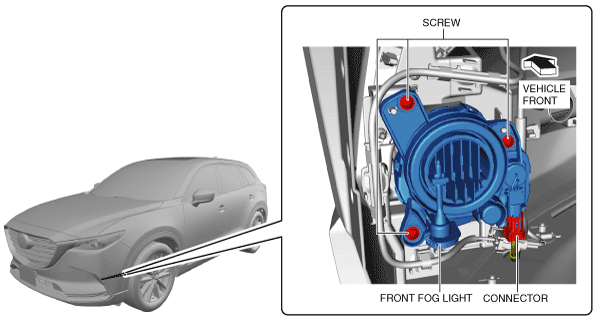

5.  Disconnect the connector.

ac9uuw00007158

6.  Remove the screws.

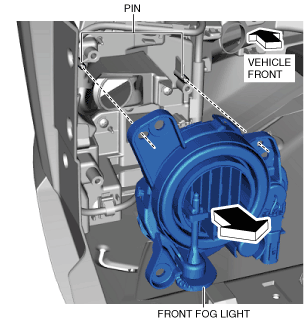

7.  Remove the front fog light.

ac9uuw00007159

8.  Install in the reverse order of removal.

9.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
