HAZARD WARNING SWITCH INSPECTION

id091800803100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the hazard warning switch terminals is as indicated in the table.

ac9wzw00003431

ac9wzw00003432

•  If the continuity is as indicated in the table, go to the next step.

•  If not as indicated in the table, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

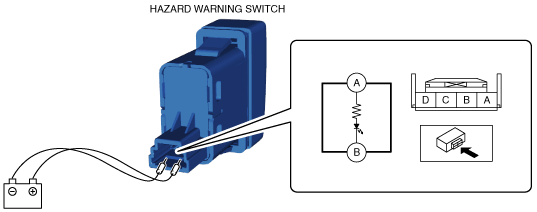

5.  Apply battery voltage to hazard warning switch terminal A, and connect terminal B to ground.

ac9uuw00007167

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)
