SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800811500

Two Screws Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

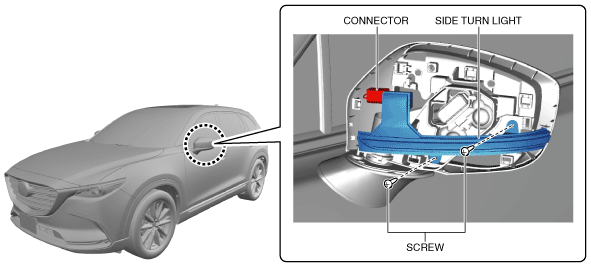

4.  Remove the screws.

ac9uuw00007193

5.  Disconnect the connector.

6.  Remove the side turn light.

7.  Install in the reverse order of removal.

Three Screws Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

(2)  Upper outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(3)  Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

3.  Install in the reverse order of removal.

4.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
