FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY

id091800816000

1. Remove the front combination light. ( See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

2. Disassemble in the order shown in the figure.

3. Assemble in the reverse order of disassembly.

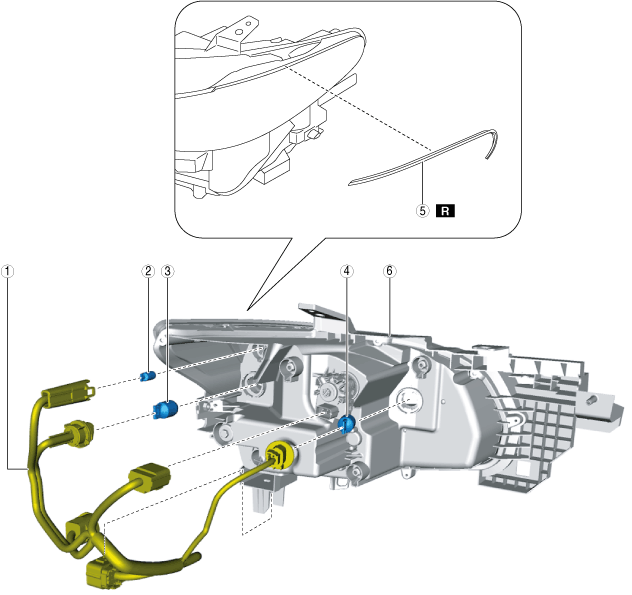

Without adaptive LED headlights

ac9wzw00006540

1	Short cord (See Short Cord Removal Note.)
2	Parking light bulb (See PARKING LIGHT BULB REMOVAL/INSTALLATION.)
3	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
4	Running light bulb (See RUNNING LIGHT BULB REMOVAL/INSTALLATION.)
5	Protector (See Protector Installation Note.)
6	Front combination light

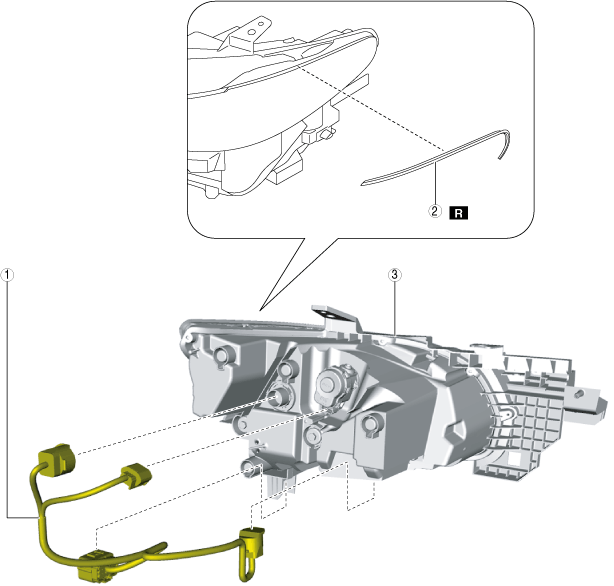

With adaptive front lighting system (AFS)

ac9wzw00006541

1	Short cord (See Short Cord Removal Note.)
2	Protector (See Protector Installation Note.)
3	Front combination light

Short Cord Removal Note

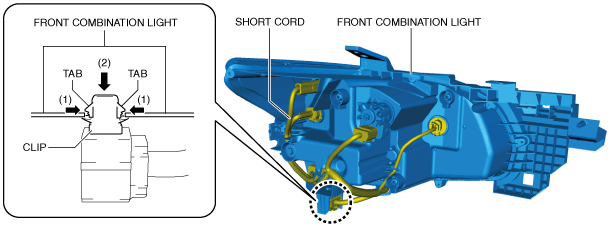

1. While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.

ac9uuw00007225

2. Pull the clip out of the front combination light and remove the short cord.

Protector Installation Note

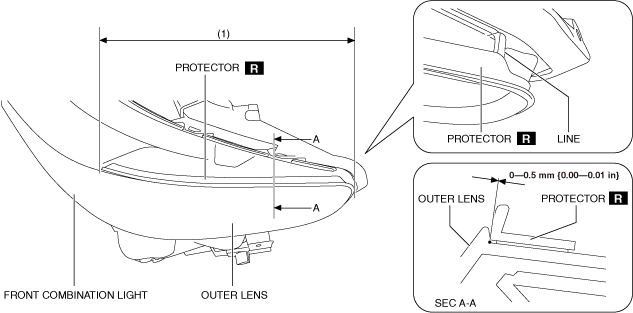

1. Peel off the tape backing of the protector in range (1) shown in the figure.

ac9wzw00006535

2. Align the protector as shown in the figure using the outer lens line as a reference.

3. Adhere the protector along the outer lens surface.

4. Peel off all of the tape backing of the protector.

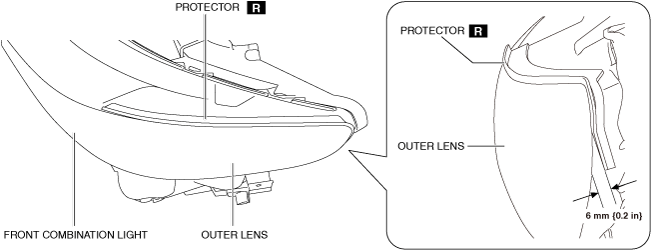

5. Adhere the protector to the position shown in the figure.

ac9wzw00006536

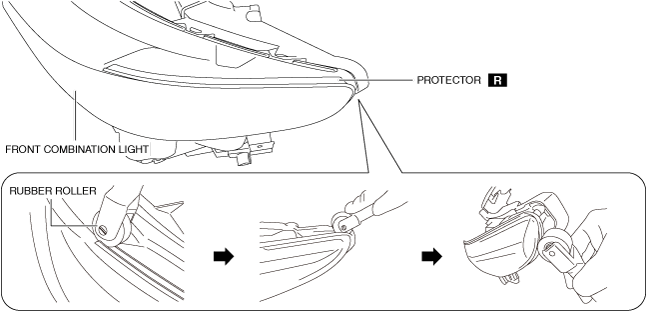

6. Apply pressure to the protector using a commercially available rubber roller.

ac9wzw00006537
