REAR FOG LIGHT SHORT-CORD REMOVAL/INSTALLATION

id091800971200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

3.  Remove the rear fog light. (See REAR FOG LIGHT REMOVAL/INSTALLATION.)

4.  Remove the tape.

ac9wzw00003981

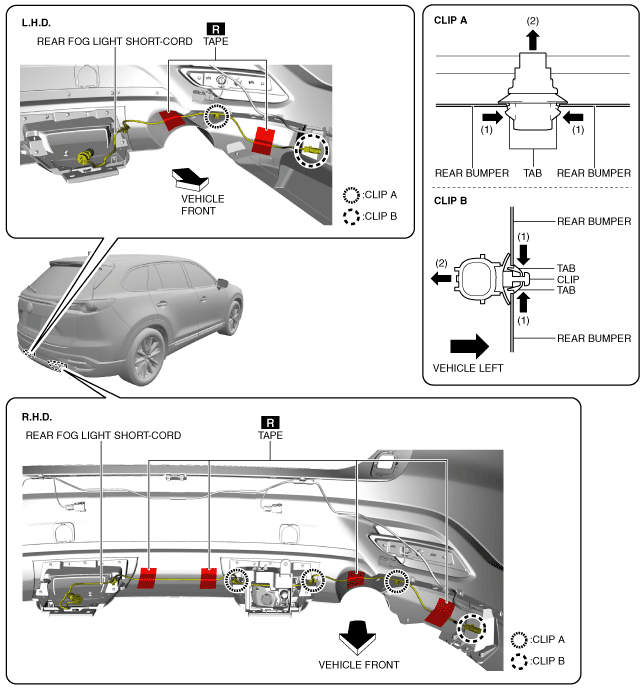

5.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the rear bumper.

6.  Remove the clips.

7.  Remove the rear fog light short-cord.

8.  Install in the reverse order of removal.
