WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

id091900801800

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

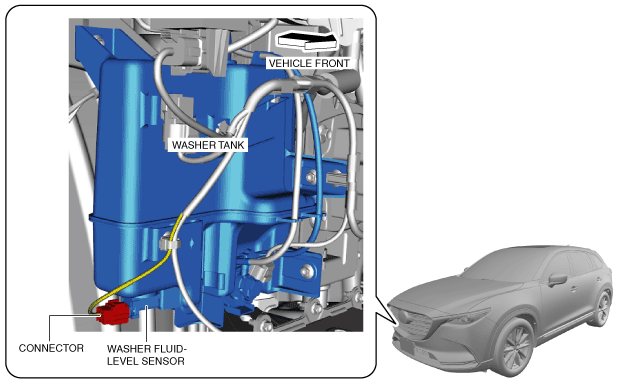

4.  Disconnect the connector.

ac9uuw00007304

5.  Remove the washer fluid-level sensor.

ac9uuw00007305

6.  Remove the grommet.

7.  Install in the reverse order of removal.
