HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

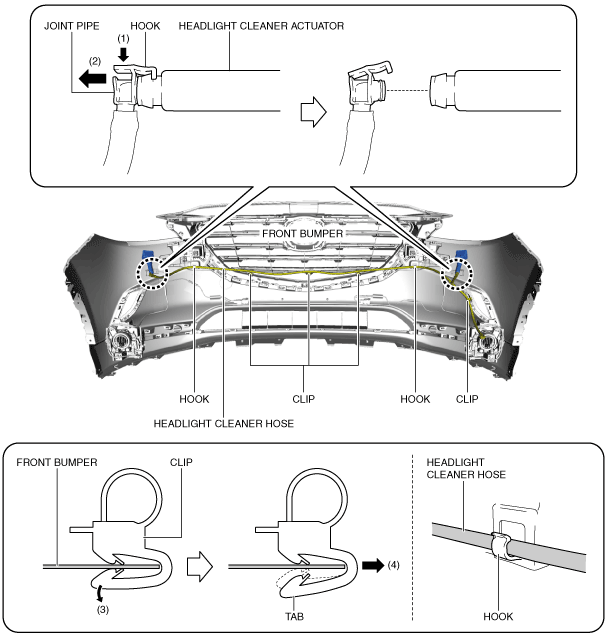

4.  While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from the headlight cleaner actuator.

ac9wzw00003530

5.  Pull out the headlight cleaner hose from the hooks.

6.  Widen the tab of the clip in the direction of arrows (3) shown in the figure, pull the clip in the direction of arrow (4) to remove the clip from the front bumper.

7.  Remove the headlight cleaner hose.

8.  Install in the reverse order of removal.
