WASHER MOTOR INSPECTION

id091900805100

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

4.  Disconnect the connector.

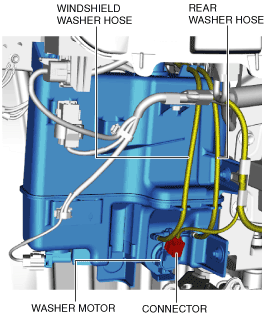

ac9wzw00003535

5.  Disconnect the washer hoses from the washer motor.

Warning

•  Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.

6.  Apply battery voltage to washer motor terminal A, and connect terminal B to ground.

ac9uuw00007318

7.  Verify that washer fluid sprays from the front side of the washer motor.

ac9uuw00007319

•  If washer fluid does not spray from the front side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION.)

8.  Apply battery positive voltage to washer motor terminal B, and connect terminal A to ground.

9.  Verify that washer fluid sprays from the rear side of the washer motor.

ac9uuw00007320

•  If washer fluid does not spray from the rear side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION.)
