HORN REMOVAL/INSTALLATION

id092200012600

Horn LO

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

4.  Disconnect the connector.

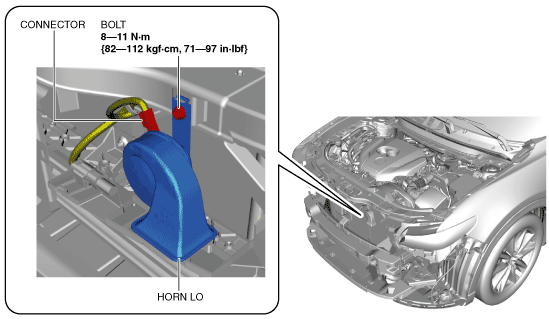

ac9uuw00006752

5.  Remove the bolt.

6.  Remove the horn LO.

7.  Install in the reverse order of removal.

Horn HI

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

4.  Disconnect the connector.

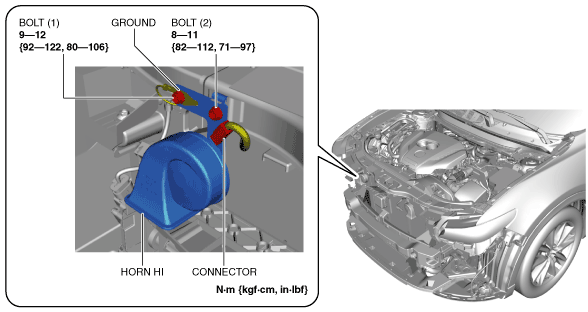

ac9uuw00006753

5.  Remove the bolt (1).

6.  Remove the ground.

7.  Remove the bolt (2).

8.  Remove the horn HI.

9.  Install in the reverse order of removal.
