REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

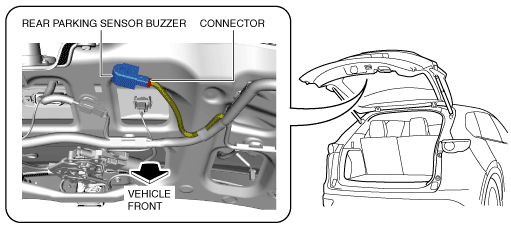

3.  Disconnect the connector.

ac9wzw00004010

4.  While pressing the rear parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the rear parking sensor buzzer in the direction of arrow (2) to detach the rear parking sensor buzzer tabs from the liftgate.

ac9wzw00004011

5.  Remove the rear parking sensor buzzer.

6.  Install in the reverse order of removal.
