FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION
id092200031800
Without 360° View Monitor System
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)
3. Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
4. Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
ac9wzw00004027
|
ac9wzw00005201
|

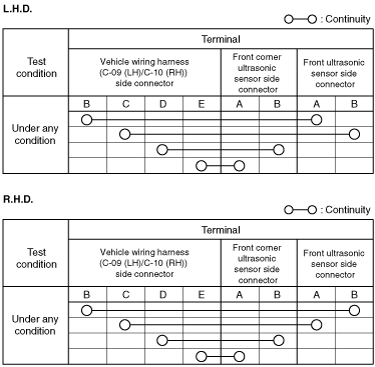

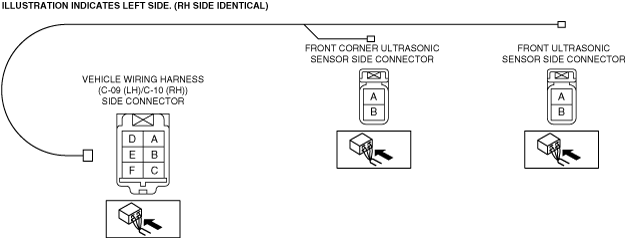

5. Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.
With 360° View Monitor System
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)
3. Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
4. Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
ac9wzw00005430
|
ac9wzw00005431
|
ac9wzw00005432
|

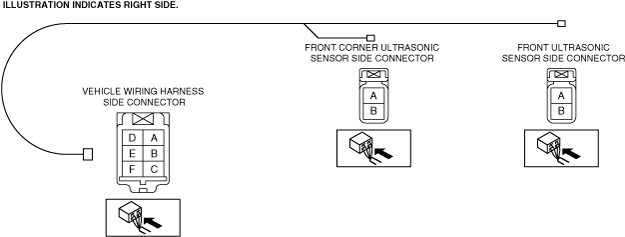

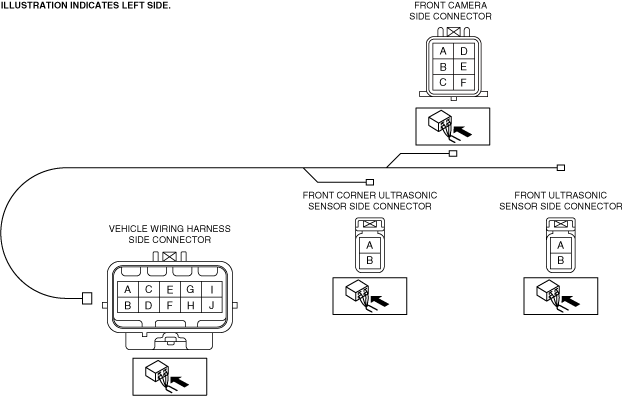

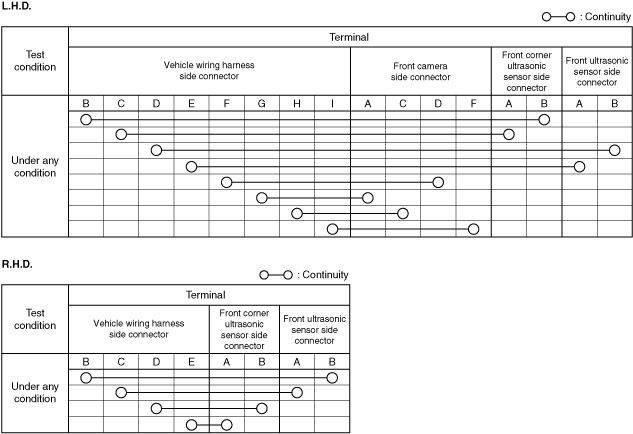

5. Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.
