BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION

id152000002800

Note

•  The blind spot monitoring (BSM) control module prior to replacement stores the vehicle specification information.

•  A new blind spot monitoring (BSM) control module does not store any vehicle specification information.

•  When the ignition is switched ON after the blind spot monitoring (BSM) control module is replaced, the blind spot monitoring (BSM) control module reads the vehicle specification information sent via CAN transmission from the instrument cluster using the automatic configuration function, and stores it.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

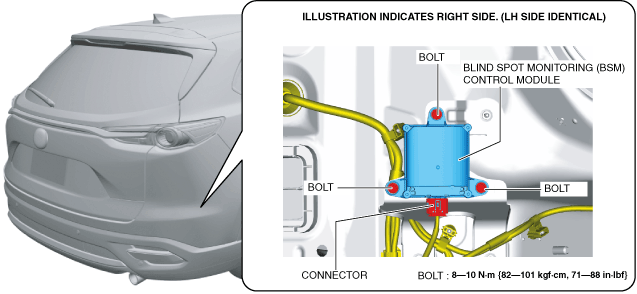

3.  Disconnect the connector.

ac9wzw00005552

4.  Remove the bolts.

5.  Remove the blind spot monitoring (BSM) control module.

6.  Install in the reverse order of removal.

7.  When the blind spot monitoring (BSM) control module is replaced, perform the automatic configuration using the following procedure.

(1)  Switch the ignition ON (engine off or on) and wait for 1 min or more.

(2)  Switch the ignition off and wait for 3 s or more.

(3)  Switch the ignition ON (engine off or on) and complete the blind spot monitoring (BSM) control module automatic configuration.

(4)  Using the M-MDS, verify that DTC U2300:54, U2300:55 or U2300:56 is not displayed.

•  If DTC U2300:54, U2300:55 or U2300:56 is displayed, go to the DTC troubleshooting procedure. (See DTC U2300:54 [BLIND SPOT MONITORING (BSM) CONTROL MODULE].) (See DTC U2300:55 [BLIND SPOT MONITORING (BSM) CONTROL MODULE].) (See DTC U2300:56 [BLIND SPOT MONITORING (BSM) CONTROL MODULE].)

Caution

•  If the blind spot monitoring (BSM) control module is replaced, not performing the blind spot monitoring (BSM) radar aiming will cause a deviation in the radar emission angle which could result in the system not detecting a vehicle approaching from the rear correctly. When the blind spot monitoring (BSM) control module is replaced, perform the blind spot monitoring (BSM) radar aiming.

8.  When the blind spot monitoring (BSM) control module is replaced, perform the blind spot monitoring (BSM) radar aiming. (See BLIND SPOT MONITORING (BSM) RADAR TEST.)
