BLIND SPOT MONITORING (BSM) SWITCH INSPECTION

id152000004000

Note

• The blind spot monitoring (BSM) switch is integrated with the cluster switch.

• To replace the blind spot monitoring (BSM) switch, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

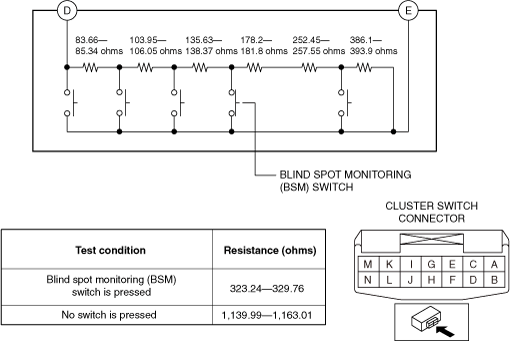

3. Verify that the resistance between cluster switch terminals D and E is as indicated in the table.

ac9wzw00004321

• If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3. Apply battery positive voltage to cluster switch terminal L, and connect terminal K to ground.

ac9wzw00004322

4. Verify that the LED is turned on.

• If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
