CRUISE CONTROL SWITCH INSPECTION [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM]

id1520000052a1

Resistance Inspection

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Measure the resistance between cruise control switch/clock spring connector terminal 3E and 3A under the following conditions:

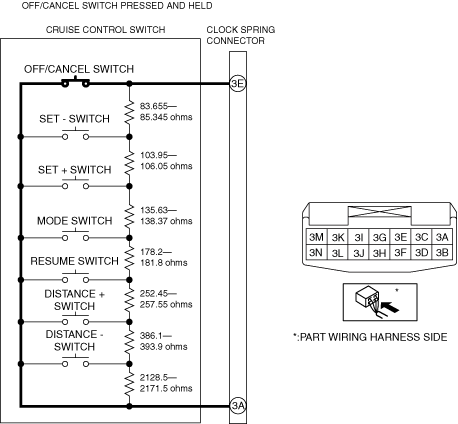

•  Resistance with OFF/CANCEL switch pressed and held

?  0 ohms

ac9wzw00005008

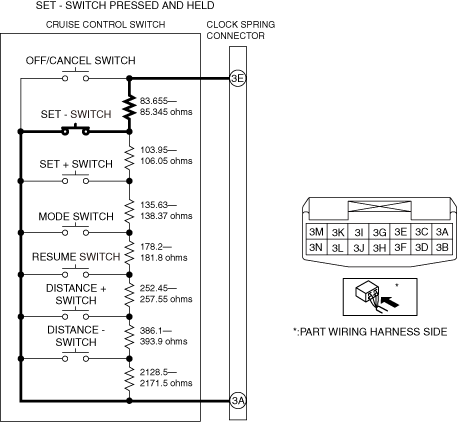

•  Resistance with SET - switch pressed and held

?  83.655—85.345 ohms

ac9wzw00005009

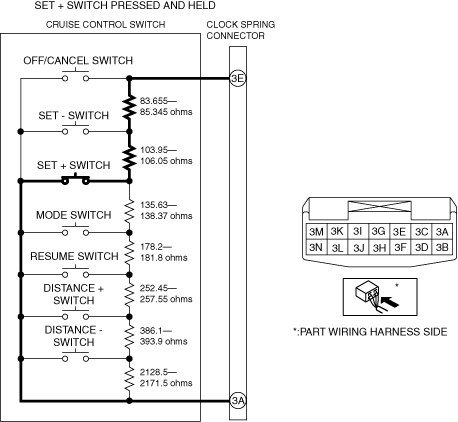

•  Resistance with SET + switch pressed and held

?  187.605—191.395 ohms

ac9wzw00005010

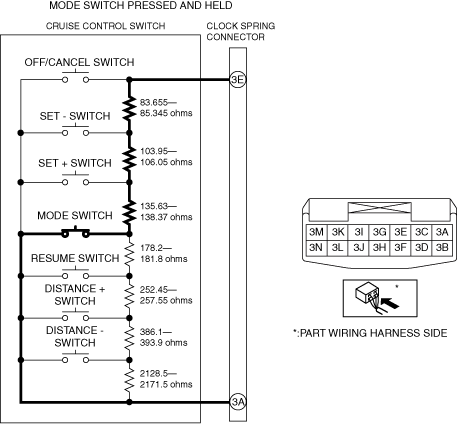

•  Resistance with MODE switch pressed and held

?  323.235—329.765 ohms

ac9wzw00005011

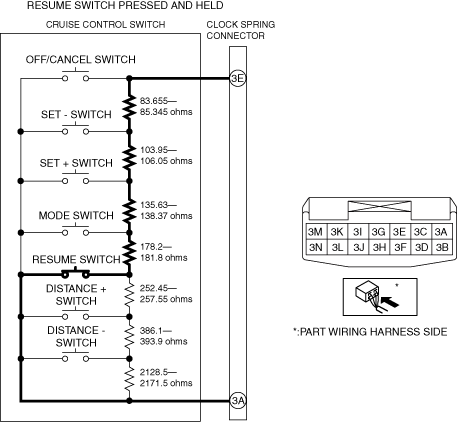

•  Resistance with RESUME switch pressed and held

?  501.435—511.565 ohms

ac9wzw00005012

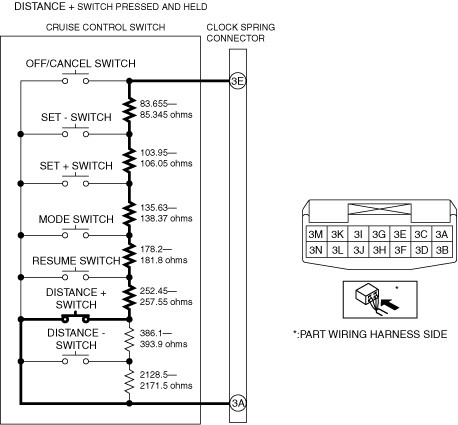

•  Resistance with DISTANCE + switch pressed and held

?  753.885—769.115 ohms

ac9wzw00005013

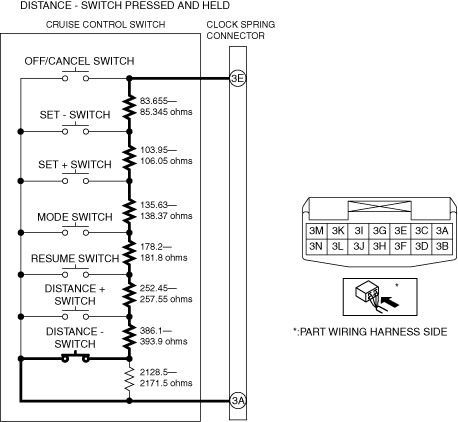

•  Resistance with DISTANCE - switch pressed and held

?  1,139.985—1,163.015 ohms

ac9wzw00005014

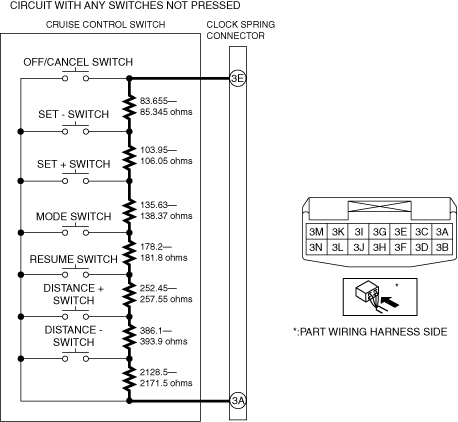

•  Resistance with any switches not pressed

?  3,268.485—3,334.515 ohms

ac9wzw00005015

LED Illumination Inspection

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Apply battery positive voltage to cruise control switch terminal 3F, and connect terminal 3B to ground.

am3uuw00013333

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the cruise control switch.
