STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION
id061300801400
-
Warning
-
• Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See
AIR BAG SYSTEM SERVICE WARNINGS.) (See
AIR BAG SYSTEM SERVICE CAUTIONS.)
• If the steering mechanism is turned from lock to lock continuously or the steering rack terminal limit is reached repeatedly, such high-load steering action increases the temperature of the steering column (to approx. 85 °C {185°F}), causing severe burns. Be careful when handling the steering column.
• If the steering column is dropped, the EPS CM could be damaged internally causing the steering mechanism to become inoperative, which could result in an unexpected accident. Always replace the steering column if it has been subjected to an impact.
-
Caution
-
• The EPS CM will not operate normally if the EPS configuration is not performed. If the steering column is replaced, always perform the EPS CM auto configuration so that the EPS operates normally.
• If the steering column is dropped it could result in internal damage to the EPS CM, therefore be careful not to drop it. If the steering column receives an impact, replace the steering column.
• If the steering column is stored in a humid place, the EPS system may not operate properly when installed to the vehicle. Store the steering column in a suitable place.
• Be careful when handling the steering column because it weighs approximately 10 kg {22 lb} and it could fall off and be damaged while servicing.
• If the intermediate shaft is connected to the steering gear (pinion) before installing the steering column to the dashboard member, the weight of the steering column could cause damage to the intermediate shaft slider/bush/yoke. Always follow the procedure in the Workshop Manual.
• The universal joint could be damaged if subjected to an impact when the intermediate shaft (pinion) is disconnected. Perform the servicing carefully avoiding impact when disconnecting the intermediate shaft from the steering gear (pinion).
• Do not release the lock of the adjusting lever when handling the steering column unless it is securely installed to the dashboard member. If the adjusting lever is unlocked with the steering column not securely installed, the steering column and other parts could be damaged.
• A new steering column is shipped in a pre-set condition. Maintain this condition until the steering column is completely installed to the dashboard member so as to avoid damage during transportation and installation.
• When removing/installing the steering column, keep the wiring harness away from the steering column installation area so as to prevent the steering column from being caught in the wiring harness and damaged.
-
Note
-
• The EPS CM prior to replacement stores the vehicle specification information.
• A new EPS CM does not store any vehicle specification information.
• When the ignition is switched ON (engine off or on) after the EPS CM is replaced, the EPS CM reads the vehicle specification information sent via CAN communication from the instrument cluster and stores it.
• If the vehicle is driven in a straight line at a vehicle speed of approx. 10 km/h {6.2 mph} or more, the EPS CM detects the steering angle neutral position automatically. Until the self-learning of the steering angle neutral position is finished, the EPS CM performs assist control based on the steering angle recognized when the ignition is switched ON (engine off or on).
• When installing a replacement part, be careful not to rotate the steering shaft until the installation has been completed.
• In order to completely interrupt the EPS system power supply, do not disconnect the battery for 60 s or more after the ignition switch is turned off.
• Do not replace the steering column (EPS system) with that of another vehicle even if they are the same model.
• Before connecting the EPS CM connector, remove the fuse or disconnect the battery to interrupt the power supply completely.
• When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.
1. Switch the ignition ON (engine off or on).
2. Open the driver's door.
3. Switch the ignition off.
4. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
5. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)
6. Straighten the steering wheel.
7. Remove the lockbolt.
8. Disconnect the steering switch connector (Without heated steering wheel system).
9. Disconnect the steering switch connector and heated steering wheel control unit connector (With heated steering wheel system).
10. Remove the steering wheel using any commercially available puller.
-
Caution
-
• Do not try to remove the steering wheel by hitting the shaft with a hammer. The steering column will be damaged.
11. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (2) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (3) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (5) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (6) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (7) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
- (8) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (9) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)
-
- (10) Light switch and the wiper and washer switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
-
- (11) Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION.)
-

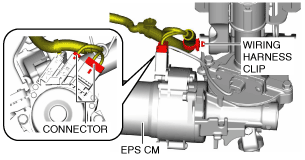

12. Detach the wiring harness clip and connectors shown in the figure.

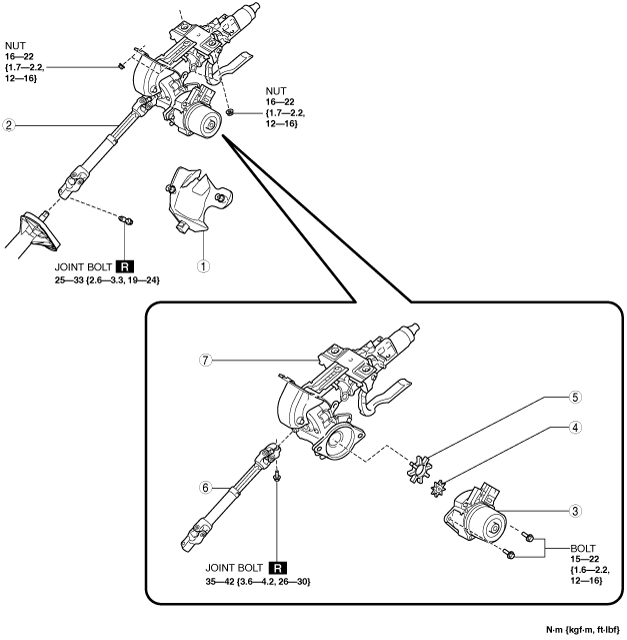

13. Remove in the order indicated in the table.
14. Install in the reverse order of removal.
15. If the steering column is replaced, perform the auto configuration using the following procedure.
- (1) Switch the ignition ON (engine off or on) and wait for 1 min or more.
-
- (2) Switch the ignition off and wait for 3 s or more.
-
- (3) Switch the ignition ON (engine off or on) and complete the EPS CM auto configuration.
-
- (4) Clear the DTC. (See CLEARING DTC [ELECTRIC POWER STEERING (EPS)].)
-
- (5) Switch the ignition off and wait for 3 s or more.
-
- (6) Switch the ignition ON (engine off or on) and wait for 1 min or more.
-
- (7) Using the M-MDS, verify that DTCs U2300:54/U2300:55/U2300:56 are not displayed.
-
-
|
1
|
Joint cover
|
|
2
|
Steering column component
|
|
3
|
EPS CM
|
|
4
|
Rubber
|
|
5
|
Spacer
|
|
6
|
Intermediate shaft
|
|
7
|
Steering column
|
Steering Column Component Removal Note
-
Caution
-
• Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until after the steering column installation is completed.
• If the steering column is removed, remove it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is removed in the incorrect order.
1. Lock the adjusting lever.
2. Remove the joint bolt.
3. Disconnect the intermediate shaft from the steering gear (pinion shaft).
4. Remove the nuts, and then remove the steering column component from the dashboard member.
EPS CM Removal Note
1. Disconnect the torque sensor connector (EPS CM side).
2. Remove the EPS CM.

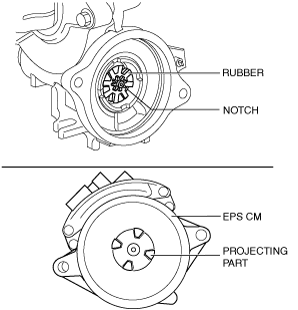

Spacer, Rubber and EPS CM Installation Note
1. Install the spacer and rubber to the steering column.
2. Install the EPS CM so that the projecting part of the EPS CM (rotor) is engaged with the notch in the rubber.
-
Note
-
• If the projecting part of the EPS CM (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS CM projection (rotor).
Steering Column Component Installation Note
-
Caution
-
• Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until after the steering column installation is completed.
• If the steering column is installed, install it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is installed in the incorrect order.
1. Verify that the adjusting lever of the steering column component is locked.
2. Temporarily install the steering column component to the dashboard member using nuts A and B.
3. Tighten the nuts in the order of nut A and nut B.
4. Insert the intermediate shaft into the steering gear (pinion shaft) to the position shown in the figure, and tighten it using a new joint bolt.
