DTC P0452:00 [PCM (SKYACTIV-G 2.5T)]

id0102s8300800

DTC P0452:00	Fuel tank pressure sensor low input
DETECTION CONDITION	• The PCM monitors the EVAP control system fuel tank pressure sensor input signal to the PCM. The test fails when the signal average drops below a minimum allowable calibrated parameter. Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

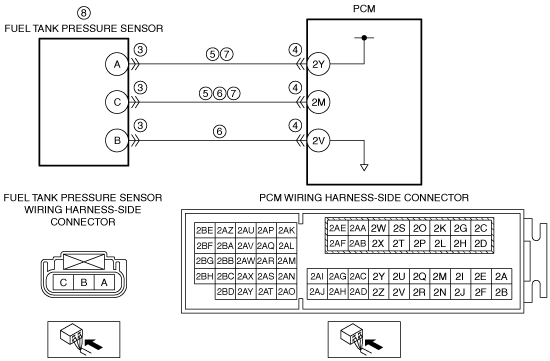

POSSIBLE CAUSE	• Fuel tank pressure sensor connector or terminals malfunction • PCM connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ? Fuel tank pressure sensor terminal A—PCM terminal 2Y ? Fuel tank pressure sensor terminal C—PCM terminal 2M • Fuel tank pressure sensor signal circuit and ground circuit are shorted to each other • Open circuit in wiring harness between the following terminals: ? Fuel tank pressure sensor terminal A—PCM terminal 2Y ? Fuel tank pressure sensor terminal C—PCM terminal 2M • Fuel tank pressure sensor malfunction • PCM malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the FREEZE FRAME DATA/snapshot data on the repair order.	—	Go to the next step.
2	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT FUEL TANK PRESSURE SENSOR CONNECTOR CONDITION • Switch the ignition off. • Disconnect the fuel tank pressure sensor connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 9.
3		No	Go to the next step.
4	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 9.
4		No	Go to the next step.
5	INSPECT FUEL TANK PRESSURE SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND • Verify that the fuel tank pressure sensor and PCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ? Fuel tank pressure sensor terminal A ? Fuel tank pressure sensor terminal C • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • Fuel tank pressure sensor terminal A—PCM terminal 2Y • Fuel tank pressure sensor terminal C—PCM terminal 2M If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to Step 9.
5		No	Go to the next step.
6	INSPECT FUEL TANK PRESSURE SENSOR SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER • Verify that the fuel tank pressure sensor and PCM connectors are disconnected. • Inspect for continuity between fuel tank pressure sensor terminals C and B (wiring harness-side). • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • Fuel tank pressure sensor terminal C—PCM terminal 2M • Fuel tank pressure sensor terminal B—PCM terminal 2V If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to each other. Go to Step 9.
6		No	Go to the next step.
7	INSPECT FUEL TANK PRESSURE SENSOR CIRCUIT FOR OPEN CIRCUIT • Verify that the fuel tank pressure sensor and PCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ? Fuel tank pressure sensor terminal A—PCM terminal 2Y ? Fuel tank pressure sensor terminal C—PCM terminal 2M • Is there continuity?	Yes	Go to the next step.
7		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • Fuel tank pressure sensor terminal A—PCM terminal 2Y • Fuel tank pressure sensor terminal C—PCM terminal 2M If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 9.
8	INSPECT FUEL TANK PRESSURE SENSOR • Inspect the fuel tank pressure sensor. (See FUEL TANK PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].) • Is there any malfunction?	Yes	Replace the charcoal canister, then go to the next step. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8		No	Go to the next step.
9	VERIFY DTC TROUBLESHOOTING COMPLETED • Always reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See CLEARING DTC [PCM (SKYACTIV-G 2.5T)].) • Perform the KOEO or KOER self test. (See KOEO/KOER SELF TEST [PCM (SKYACTIV-G 2.5T)].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) Go to the next step.
9		No	Go to the next step.
10	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G 2.5T)].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].)
10		No	DTC troubleshooting completed.
