CHARGING SYSTEM LOCATION INDEX [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)]

id0117008001t3

Note

• For location index of the generator, DC-DC converter (i-ELOOP), capacitor (i-ELOOP) on vehicles with i-ELOOP, refer to the i-ELOOP section. (See CHARGING SYSTEM LOCATION INDEX [WITH i-ELOOP (SKYACTIV-G 2.5T)].)

ac9wzw00005655

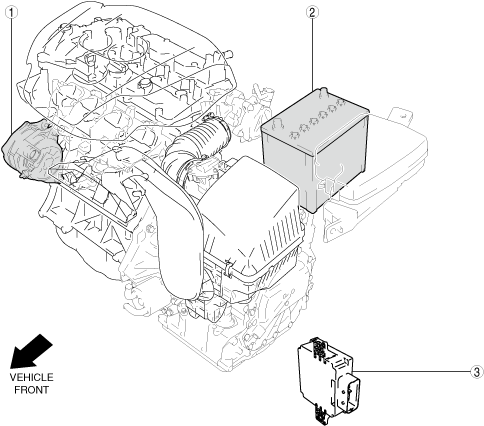

1	Generator (See GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) (See GENERATOR INSPECTION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) (See GENERATOR DISASSEMBLY/ASSEMBLY [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) (See BATTERY REMOVAL/INSTALLATION.) (See BATTERY INSPECTION.) (See BATTERY RECHARGING.)
3	DC-DC converter (with DC-DC converter) (See DC-DC CONVERTER REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) (See DC-DC CONVERTER INSPECTION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].)
