GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)]

id0117008002t3

Warning

• Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

• When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery terminal before performing the following operation.

Note

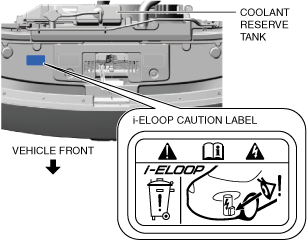

• The i-ELOOP caution label is adhered to the position shown in the figure below on vehicles with i-ELOOP. When determining if a vehicle in for servicing is equipped with i-ELOOP, refer to the i-ELOOP section. (See GENERATOR REMOVAL/INSTALLATION [WITH i-ELOOP (SKYACTIV-G 2.5T)].)

ac9wzw00003788

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3. Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION.)

4. Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5. Remove the drive belt auto tensioner. (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

7. Remove in the order indicated in the table.

8. Install in the reverse order of removal.

ac9uuw00006462

1	Terminal B cable
2	Generator connector
3	Generator (See Generator Removal Note.) (See Generator Installation Note.)

Generator Removal Note

1. Remove the wiring harness bracket using the following procedure.

(1) Remove the bolts shown in the figure.

ac9uuw00006463

(2) Remove the wiring harness clips shown in the figure.

ac9uuw00006464

(3) Remove the wiring harness bracket.

2. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3. Disconnect the connectors shown in the figure.

ac9uuw00006465

4. Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.

Note

• The generator can be removed without fully removing the lower bolt from the engine.

5. Remove the generator upper bolt.

6. Remove the generator together with the generator lower bolt from the engine.

Note

• Remove the generator from above the engine compartment.

ac9uuw00006466

Generator Installation Note

1. To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.
