OIL SEAL (COUPLING COMPONENT) REPLACEMENT

id031400802000

Special Service Tool (SST)

49 W034 201   Dust boot installer

1.  Drain the differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT.)

2.  Remove the following parts:

(1)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(2)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

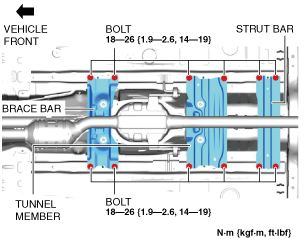

(3)  Brace bar

ac9uuw00008073

(4)  Tunnel member

(5)  Strut bar

(6)  HO2S harness bracket

ac9uuw00008074

3.  Remove the TWC from the mount rubber.

ac9uuw00008075

4.  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5.  Suspend the TWC using a cable as shown in the figure.

ac9uuw00008076

6.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

7.  Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

8.  Remove the oil seal from the differential carrier using a screwdriver or similar tool.

9.  Apply differential oil to the new oil seal lip.

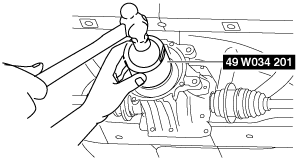

10.  Install the new oil seal to the differential carrier using the SST.

ac5uuw00000876

11.  Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

12.  Install in the reverse order of removal.

13.  Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
