VACUUM HOSE REMOVAL/INSTALLATION [R.H.D.]

id041100801652

Between Intake Manifold and Vacuum Pump

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

2.  Pinch open the clamps using pliers and disconnect the vacuum hoses.

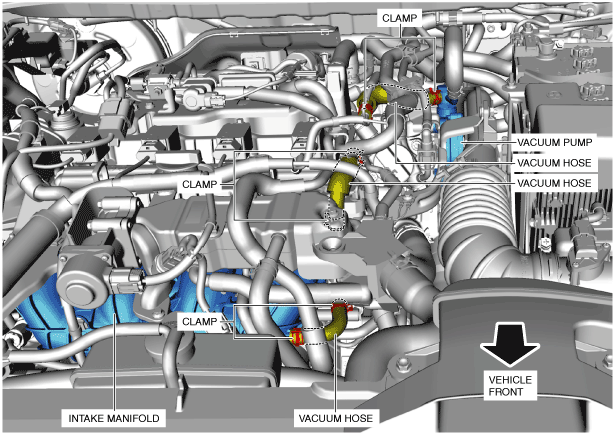

ac9wzw00004538

3.  Install in the reverse order of removal. (See Vacuum hose (between intake manifold and vacuum pump) installation note.)

Vacuum hose (between intake manifold and vacuum pump) installation note

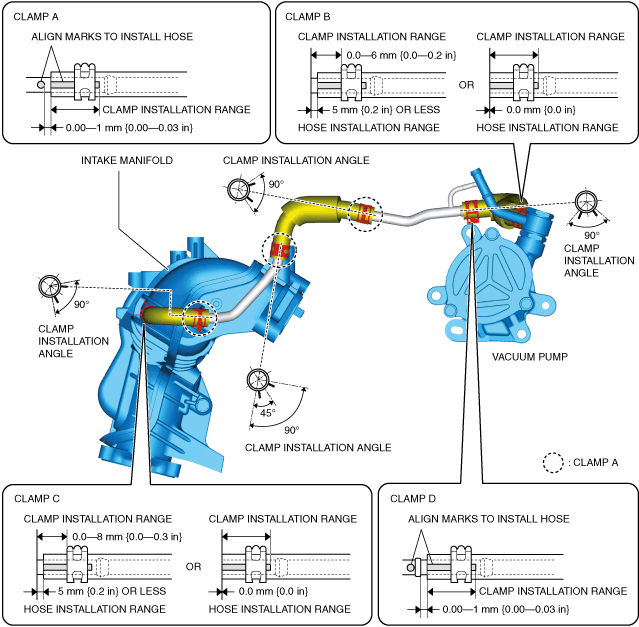

1.  Install the vacuum hoses (between intake manifold and vacuum pump) as shown in the figure.

ac9uuw00009730

Between Vacuum Pump and Power Brake Unit

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(3)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(4)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(5)  Keyless beeper (With advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(6)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

3.  Pinch open the clamps using pliers and disconnect the vacuum hoses.

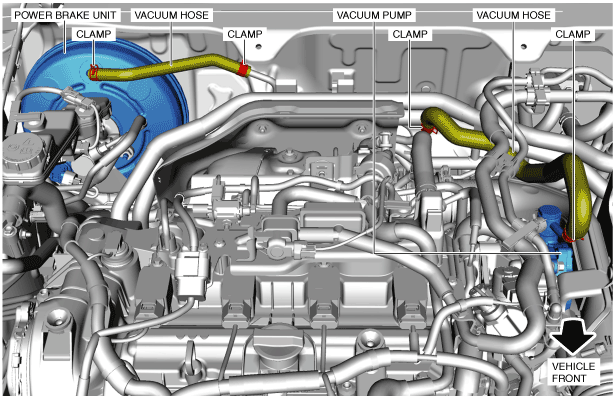

ac9wzw00004540

4.  Install in the reverse order of removal. (See Vacuum hose (between vacuum pump and power brake unit) installation note.)

Vacuum hose (between vacuum pump and power brake unit) installation note

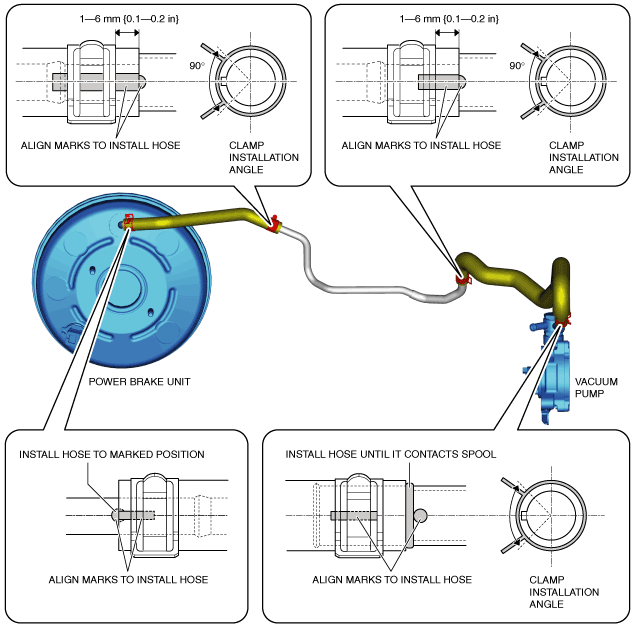

1.  Install the vacuum hoses (between vacuum pump and power brake unit) as shown in the figure.

ac9wzw00004541
