DTC B1A61:11, B1A61:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)] - MAZDA CX-9 TC 2016

DTC B1A61:11, B1A61:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2816800

Note

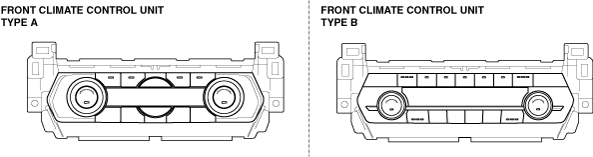

• There are two types of front climate control unit, type A and type B.

ac9wzw00005453

Front Climate Control Unit Type A

System malfunction location	• B1A61:11: Cabin temperature sensor circuit short to ground • B1A61:13: Cabin temperature sensor circuit open
Detection condition	• Malfunction in wiring harness between cabin temperature sensor and front climate control unit
Fail-safe function	Malfunction determined when ignition switched ON • Cabin temperature sensor input value is fixed at the value right before the malfunction. Malfunction already exists when ignition switched ON • Cabin temperature sensor input value is fixed at 25 °C {77 °F}.
Possible cause	• Connector or terminal malfunction • Cabin temperature sensor malfunction • Open circuit in wiring harness between front climate control unit and cabin temperature sensor • Short to ground in wiring harness between front climate control unit and cabin temperature sensor • Front climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT CABIN TEMPERATURE SENSOR CONNECTOR • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the cabin temperature sensor connector. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the connector or terminal. After repair procedure, go to Step 6.
2	INSPECT CABIN TEMPERATURE SENSOR • Inspect the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR INSPECTION.) • Is it normal?	Yes	Go to the next step.
2		No	Replace the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) Go to Step 6.
3	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT • Disconnect the front climate control unit connector. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) • Inspect for continuity between the following terminals (wiring harness-side): ? Front climate control unit terminal 1T—cabin temperature sensor terminal A ? Front climate control unit terminal 1I—cabin temperature sensor terminal B • Is there continuity?	Yes	Go to the next step.
3		No	Refer to the wiring diagram and verify whether or not there is a common connector between front climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 6.
4	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR SHORT TO GROUND • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ? Front climate control unit terminal 1T • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between front climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to Step 6.
4		No	Go to the next step.
5	VERIFY FRONT CLIMATE CONTROL UNIT CONNECTOR CONDITION • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
5		No	Repair/replace the connector or terminal. After repair procedure, go to the next step.
6	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN • Reconnect the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the front climate control unit. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify other DTCs displayed. • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
7		No	DTC troubleshooting completed.

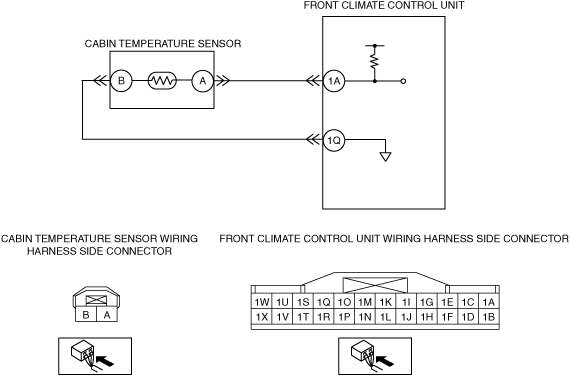

Front Climate Control Unit Type B

System malfunction location	• B1A61:11: Cabin temperature sensor circuit short to ground • B1A61:13: Cabin temperature sensor circuit open
Detection condition	• Malfunction in wiring harness between cabin temperature sensor and front climate control unit
Fail-safe function	Malfunction determined when ignition switched ON • Cabin temperature sensor input value is fixed at the value right before the malfunction. Malfunction already exists when ignition switched ON • Cabin temperature sensor input value is fixed at 25 °C {77 °F}.
Possible cause	• Connector or terminal malfunction • Cabin temperature sensor malfunction • Open circuit in wiring harness between front climate control unit and cabin temperature sensor • Short to ground in wiring harness between front climate control unit and cabin temperature sensor • Front climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT CABIN TEMPERATURE SENSOR CONNECTOR • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the cabin temperature sensor connector. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the connector or terminal. After repair procedure, go to Step 6.
2	INSPECT CABIN TEMPERATURE SENSOR • Inspect the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR INSPECTION.) • Is it normal?	Yes	Go to the next step.
2		No	Replace the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) Go to Step 6.
3	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT • Disconnect the front climate control unit connector. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) • Inspect for continuity between the following terminals (wiring harness-side): ? Front climate control unit terminal 1A—cabin temperature sensor terminal A ? Front climate control unit terminal 1Q—cabin temperature sensor terminal B • Is there continuity?	Yes	Go to the next step.
3		No	Refer to the wiring diagram and verify whether or not there is a common connector between front climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 6.
4	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR SHORT TO GROUND • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ? Front climate control unit terminal 1A • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between front climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to Step 6.
4		No	Go to the next step.
5	VERIFY FRONT CLIMATE CONTROL UNIT CONNECTOR CONDITION • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
5		No	Repair/replace the connector or terminal. After repair procedure, go to the next step.
6	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN • Reconnect the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the front climate control unit. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify other DTCs displayed. • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
7		No	DTC troubleshooting completed.
