CABIN TEMPERATURE SENSOR INSPECTION
id074000807700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (2) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (3) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (5) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (6) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (7) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
3. Remove the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

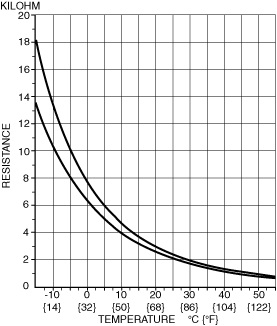

4. Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminals A and B.
-
