AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000803200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.)(See FRONT BUMPER INSTALLATION.)

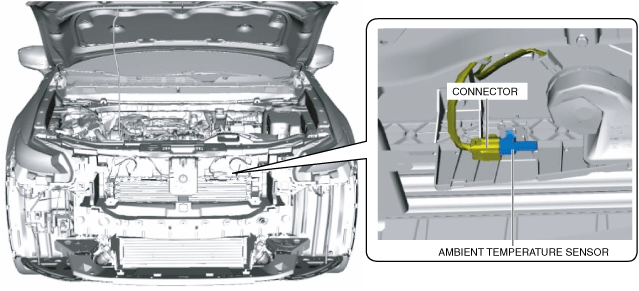

4.  Disconnect the connector.

ac9wzw00003700

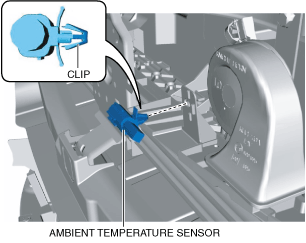

5.  Remove the clip.

ac9wzw00003701

6.  Remove the ambient temperature sensor.

7.  Install in the reverse order of removal.

8.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
