AMBIENT TEMPERATURE SENSOR INSPECTION

id074000803300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.)(See FRONT BUMPER INSTALLATION.)

4.  Remove the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

5.  Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminals A and B.

ac9uuw00007351

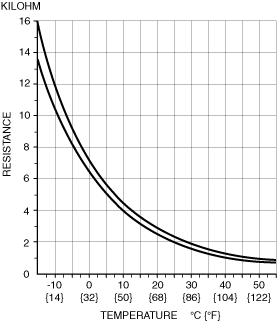

•  If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

ac9uuw00007352
