FRONT FENDER INSULATOR No.2 REMOVAL/INSTALLATION

id091000804400

1.  Remove the following parts:

(1)  Front deflector (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

(2)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(3)  Front mudguard (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

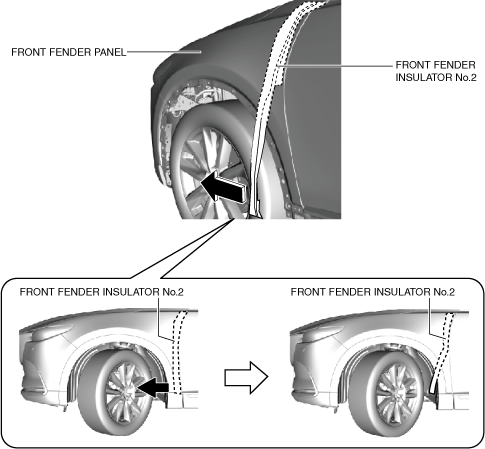

2.  Remove the front fender insulator No.2 in the direction of the arrow shown in the figure.

ac9uuw00005874

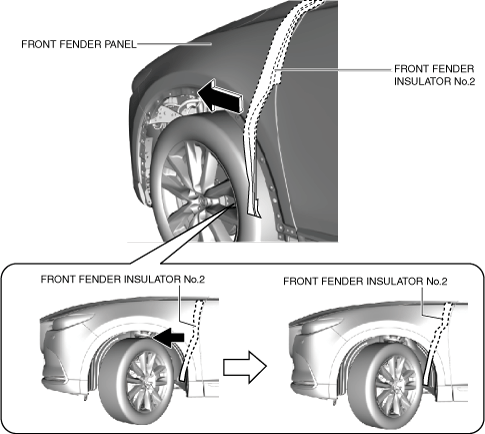

3.  Remove the front fender insulator No.2 in the direction of the arrow shown in the figure.

ac9uuw00005875

4.  Remove the front fender insulator No.2 in the direction of the arrow shown in the figure.

ac9uuw00005876

5.  Remove the front fender insulator No.2.

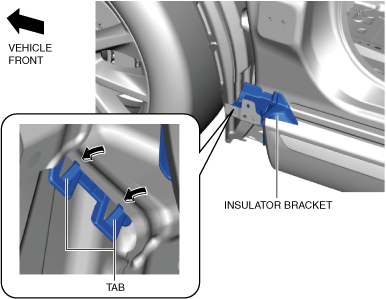

6.  Press tabs in the direction of the arrows shown in the figure and detach it from the insulator bracket.

ac9uuw00005877

7.  Remove the insulator bracket.

8.  Install in the reverse order of removal. (See Front Fender Insulator No.2 Installation Note.)

Front Fender Insulator No.2 Installation Note

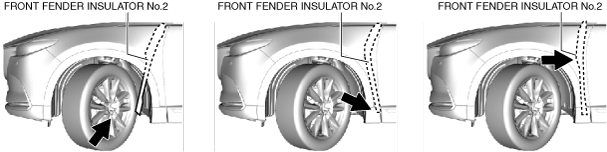

1.  Install the front fender insulator No.2 in the order of arrows shown in the figure.

ac9uuw00005878
