SET PLATE REMOVAL/INSTALLATION

id091000878900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the cap.

ac9uuw00005885

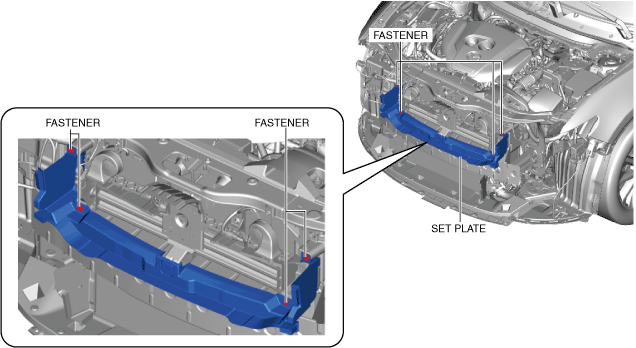

4.  Remove the fasteners.

ac9uuw00005886

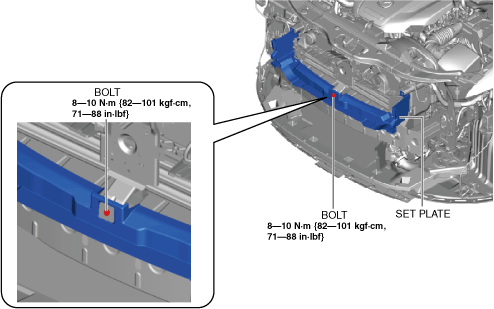

5.  Remove the bolt.

ac9uuw00005887

6.  Install in the reverse order of removal.
