PUSH BUTTON START INSPECTION

id091400006900

Resistance Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(6)  Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the push button start terminals is as indicated in the table.

am3uuw00009904

ac9uuw00009433

•  If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(6)  Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION.)

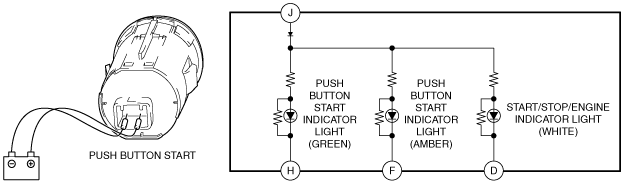

3.  Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

am2zzw00008322

am2zzw00008323

•  If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
