FRONT SASH MOLDING REMOVAL

id091600805000

1.  Remove the following parts:

(1)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(2)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(3)  Front door garnish (See FRONT DOOR GARNISH REMOVAL.)

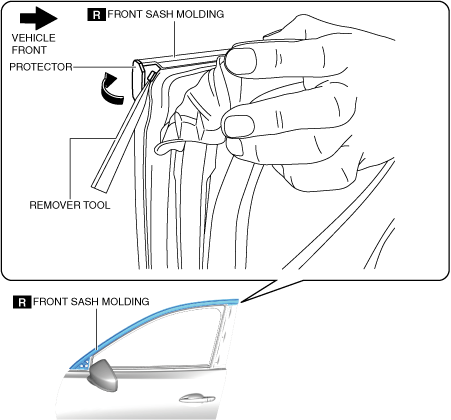

2.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and remove the protector from the front sash molding.

ac9uuw00006889

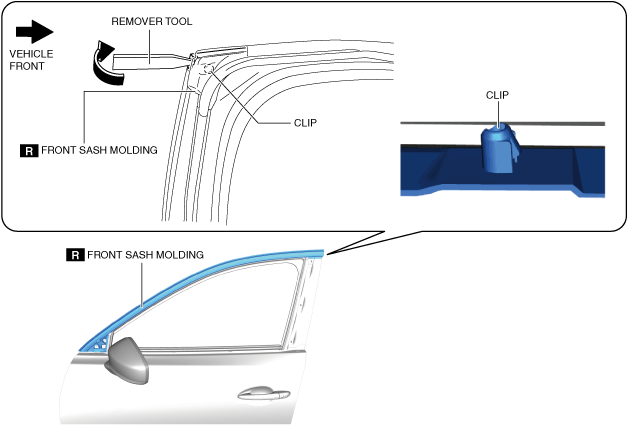

3.  Move the remover tool in the direction of the arrow shown in the figure and detach the front sash molding clip from the front door.

ac9uuw00006890

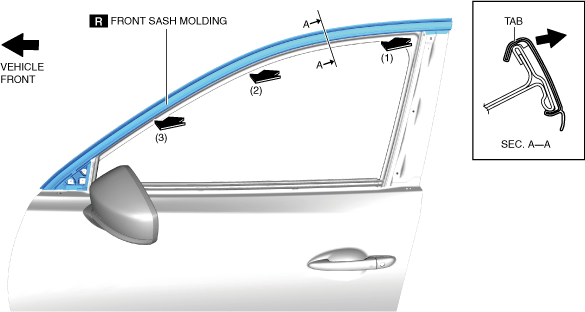

4.  Pull the front sash molding in the direction of the arrows in the order shown in the figure and detach the front sash molding tab from the front door.

ac9uuw00006891

5.  Remove the front sash molding.
