DOOR SASH FILM INSTALLATION

id091600805300

Front Door Sash Film

1. Remove any grease or dirt from the affixing surface of the front door sash film.

2. Peel off the tape backing and attach the front door sash film to the position shown in the figure.

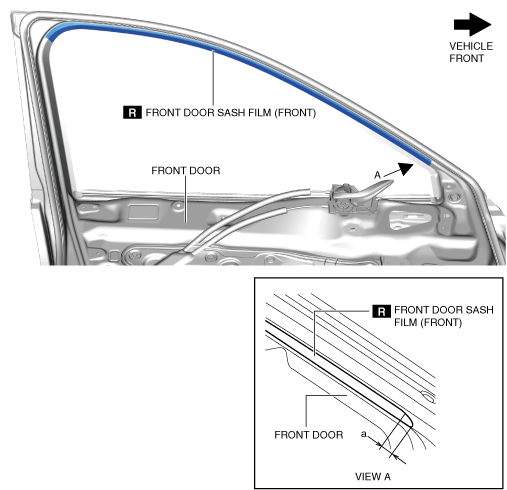

ac9wzw00003931

Standard clearance

a: 5.0 mm {0.20 in} or more

3. Peel off the tape backing and attach the front door sash films to the positions shown in the figure.

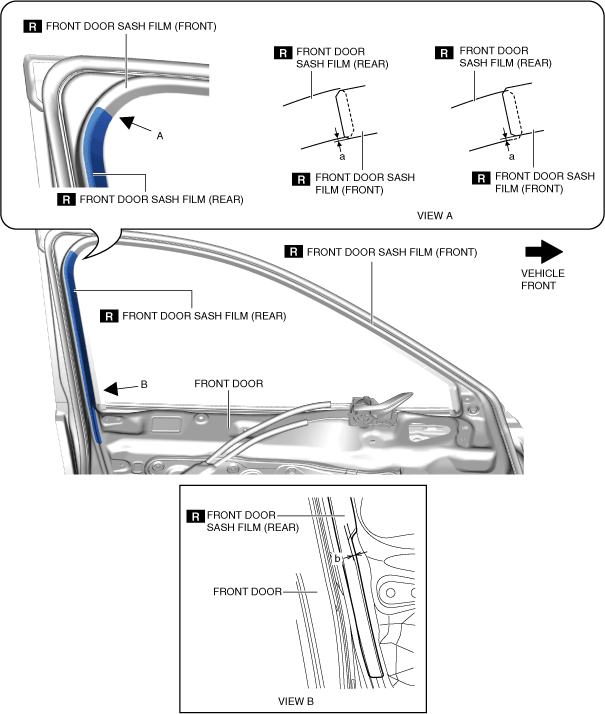

ac9wzw00003932

Standard clearance

a: 1.0 mm {0.039 in} or less

b: 4.0 mm {0.16 in}

4. Install the glass run channel to the front door panel by pressing the glass run channel along the entire perimeter in the directions of the arrows.

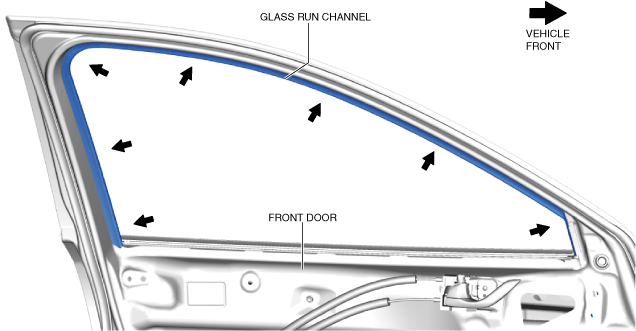

ac9wzw00004896

5. Install the following parts:

(1) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(2) Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

Rear Door Sash Film

1. Remove any grease or dirt from the affixing surface of the rear door sash film.

2. Peel off the tape backing and attach the rear door sash film to the position shown in the figure.

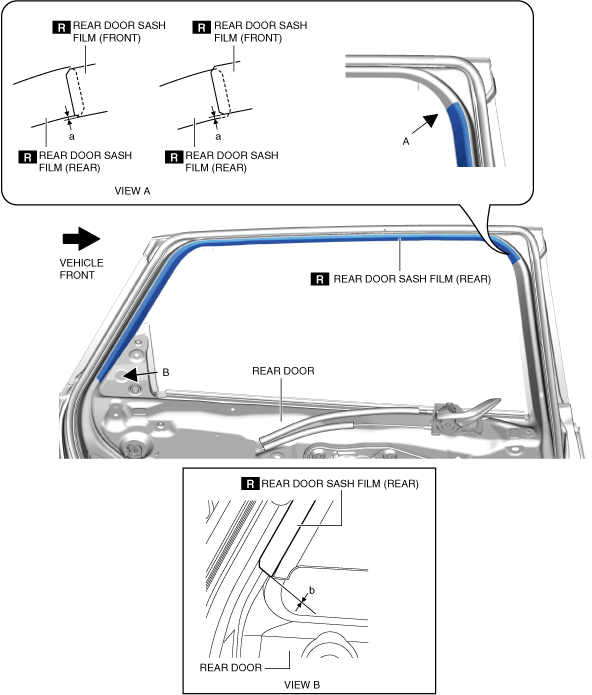

ac9wzw00003933

Standard clearance

a: 10 mm {0.39 in} or more

3. Peel off the tape backing and attach the rear door sash films to the positions shown in the figure.

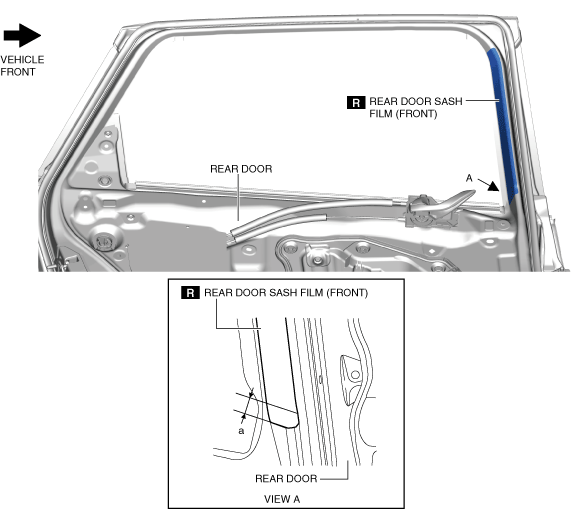

ac9wzw00003934

Standard clearance

a: 1.0 mm {0.039 in} or less

b: 0.0 mm {0.0 in}

4. Install the following parts:

(1) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(2) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(3) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
