WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

id091900802000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Disconnect windshield washer hose B from joint pipe A of windshield washer hose A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Disconnect the windshield washer hoses from the windshield washer nozzle.

ac9wzw00003520

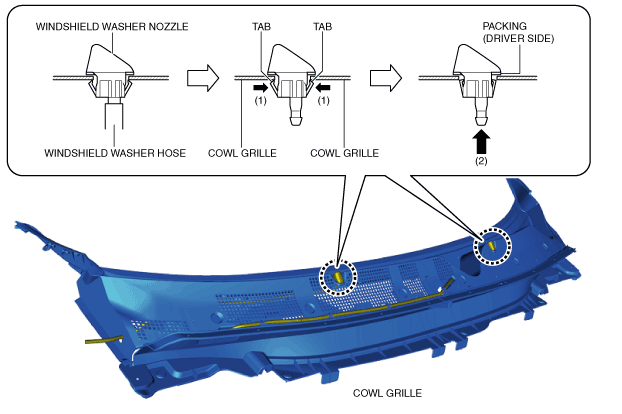

5.  While pressing the windshield washer nozzle tabs in the direction of arrows (1) shown in the figure, press the windshield washer nozzle in the direction of arrow (2) to detach the windshield washer nozzle tabs from the cowl grille.

6.  Remove the windshield washer nozzle.

7.  Install in the reverse order of removal.

8.  Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
