WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900802100

Windshield Washer Hose A

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

3. Disconnect windshield washer hose A from the washer motor.

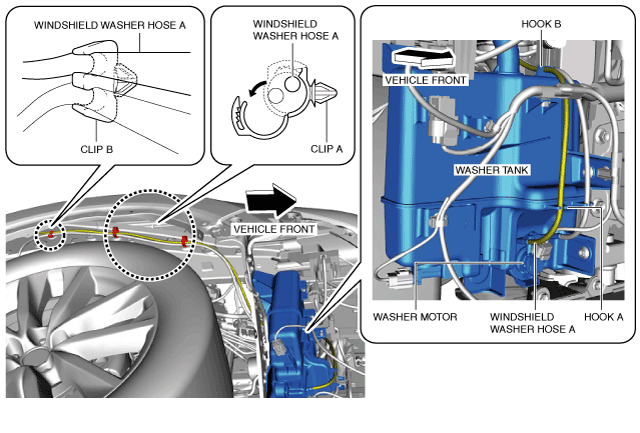

ac9uuw00007309

4. Pull out windshield washer hose A from hook A.

5. Pull out windshield washer hose A from hook B.

6. Pull out windshield washer hose A from clips A and B.

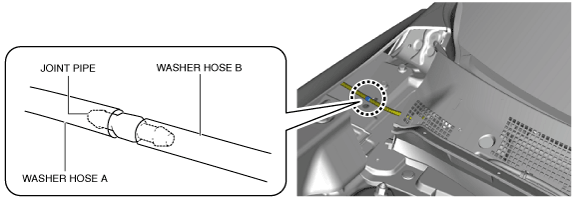

7. Disconnect windshield washer hose B from the joint pipe.

ac9uuw00007310

8. Remove windshield washer hose A.

9. Install in the reverse order of removal.

Windshield Washer Hose B

L.H.D.

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2. Disconnect windshield washer hose B from joint pipe A of windshield washer hose A. (See Windshield Washer Hose A.)

3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4. Disconnect windshield washer hose C from joint pipe B.

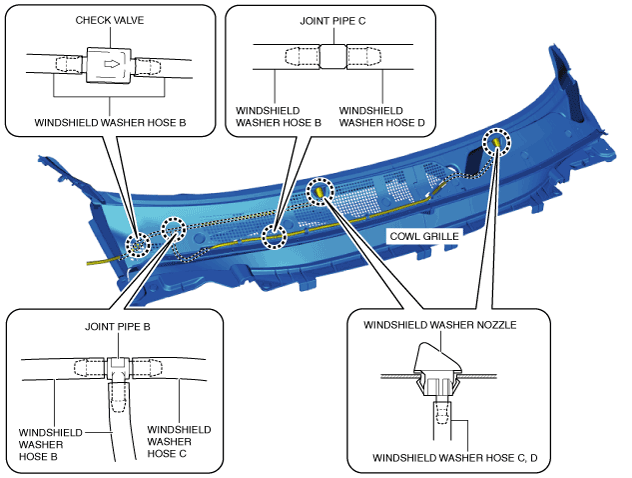

ac9uuw00007311

5. Disconnect windshield washer hose D from joint pipe C.

6. Remove windshield washer hose B.

7. Install in the reverse order of removal.

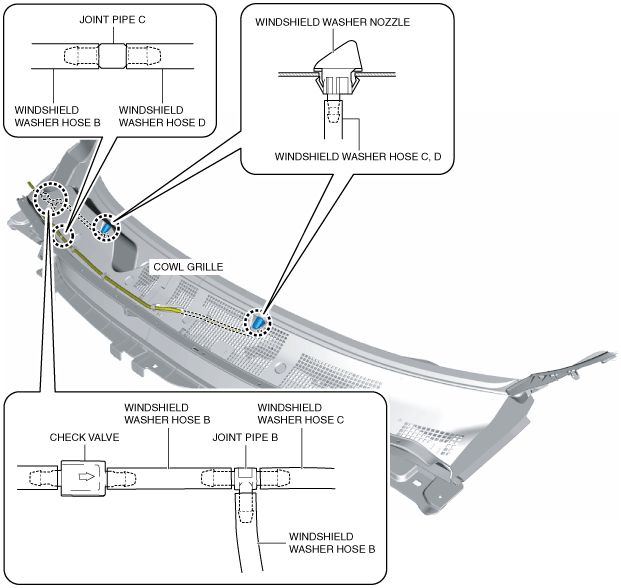

R.H.D.
