REAR WASHER NOZZLE REMOVAL/INSTALLATION

id091900802200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear spoiler. (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

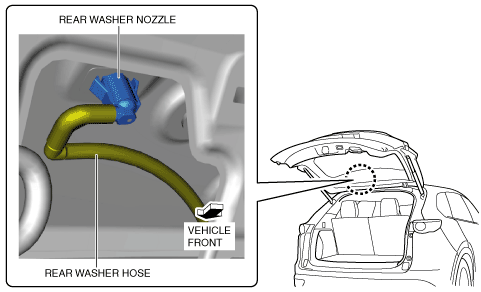

4.  Disconnect the rear washer hose from the rear washer nozzle.

ac9uuw00007312

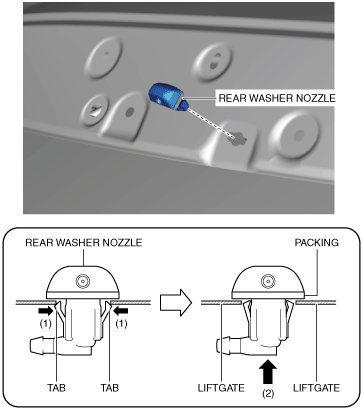

5.  While pressing the rear washer nozzle tabs in the direction of arrows (1) shown in the figure, press out the rear washer nozzle in the direction of arrow (2) shown in the figure.

ac9uuw00007313

6.  Remove the rear washer nozzle.

7.  Install in the reverse order of removal.

8.  Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT.)
