DTC P0035:00 [PCM (SKYACTIV-G 2.5T)]

id0102s8210100

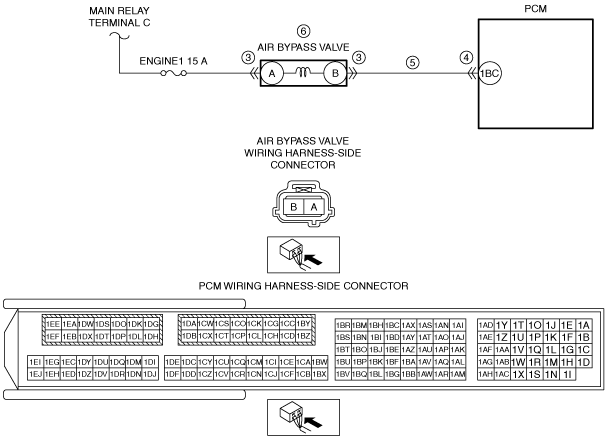

DTC P0035:00	Air bypass valve control circuit high input
DETECTION CONDITION	• The air bypass valve control voltage at the PCM terminal 1BC is high for a continuous 5 s relative to the PCM control condition. Diagnostic support note • This is a continuous monitor (other). • The check engine light does not illuminate. • FREEZE FRAME DATA is not available. • Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Stop the supercharging pressure control. (Fully open the wastegate valve)
POSSIBLE CAUSE	• Air bypass valve connector or terminals malfunction • PCM connector or terminals malfunction • Short to power supply in wiring harness between air bypass valve terminal B and PCM terminal 1BC • Air bypass valve malfunction • PCM malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the snapshot data on the repair order.	—	Go to the next step.
2	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT AIR BYPASS VALVE CONNECTOR CONDITION • Switch the ignition off. • Disconnect the air bypass valve connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 7.
3		No	Go to the next step.
4	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 7.
4		No	Go to the next step.
5	INSPECT AIR BYPASS VALVE CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the air bypass valve and PCM connectors are disconnected. • Switch the ignition ON (engine off). Note • Another DTC may be stored by the PCM detecting an open circuit. • Measure the voltage at the air bypass valve terminal B (wiring harness-side). • Is the voltage 0 V?	Yes	Go to the next step.
5		No	Refer to the wiring diagram and verify whether or not there is a common connector between air bypass valve terminal B and PCM terminal 1BC. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to power supply. Go to Step 7.
6	INSPECT AIR BYPASS VALVE • Switch the ignition off. • Inspect the air bypass valve. (See AIR BYPASS VALVE INSPECTION [SKYACTIV-G 2.5T].) • Is there any malfunction?	Yes	Replace the dynamic pressure turbo (DPT), then go to the next step. (See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6		No	Go to the next step.
7	VERIFY DTC TROUBLESHOOTING COMPLETED • Always reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See CLEARING DTC [PCM (SKYACTIV-G 2.5T)].) • Perform the KOER self test. (See KOEO/KOER SELF TEST [PCM (SKYACTIV-G 2.5T)].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) Go to the next step.
7		No	Go to the next step.
8	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G 2.5T)].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].)
8		No	DTC troubleshooting completed.
