DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
id0113q4707700
1. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4. Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION.)
6. Remove the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7. Set the turbocharger air inlet hose aside. (taiwan) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8. Remove the turbocharger air inlet hose. (except taiwan) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
9. Remove the turbocharger air outlet pipe installation nuts and set the turbocharger air outlet pipe aside. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
10. Disconnect the water hose (dynamic pressure turbo side) shown in the figure.
ac9uuw00009687
|
11. Disconnect the vacuum hose (engine side) shown in the figure.
ac9uuw00009688
|
12. Remove the evaporative hoses shown in the figure.
ac9uuw00009689
|

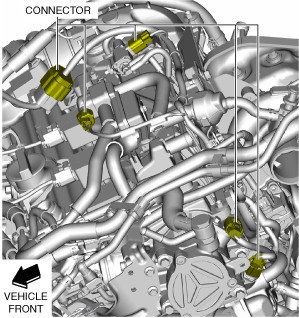

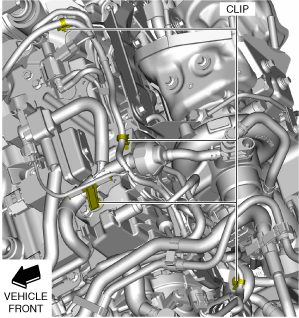

13. Disconnect the connectors and clips shown in the figure.
ac9uuw00009690
|
ac9uuw00009691
|
14. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
15. Remove the WU-TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
16. Remove the oil pipe protector. (See OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
17. Disconnect the vacuum hose (exhaust manifold variable valve actuator side) shown in the figure.
ac9uuw00009692
|

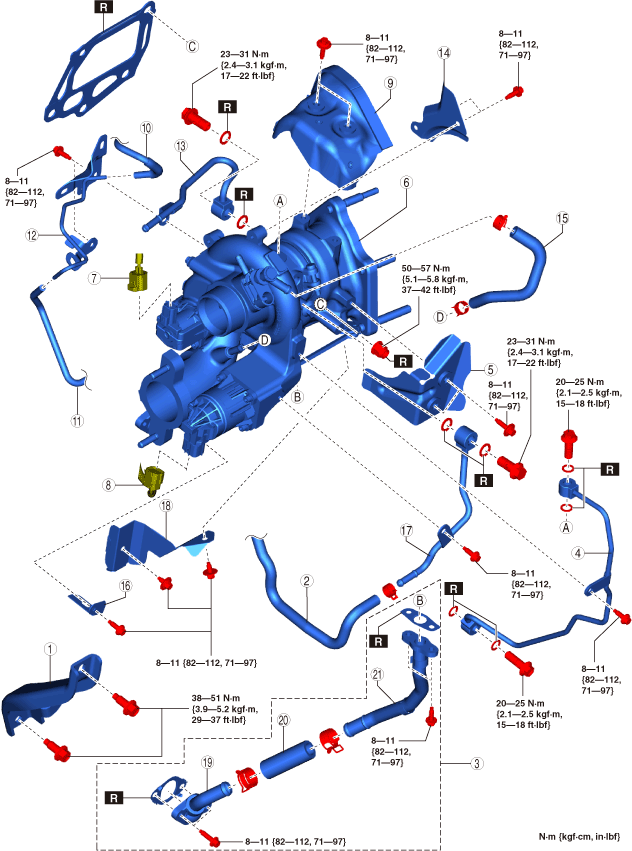

18. Remove in the order indicated in the table.
19. Install in the reverse order of removal.
20. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)
21. Perform the following procedure.
ac9uuw00009372
|
|
1
|
Dynamic pressure turbo bracket
|
|
2
|
Water hose No.1
|
|
3
|
Oil pipe component
|
|
4
|
Oil pipe No.1
|
|
5
|
Insulator No.1
|
|
6
|
Dynamic pressure turbo
|
|
7
|
Air bypass valve connector
|
|
8
|
Wastegate valve actuator connector
|
|
9
|
Insulator No.2
|
|
10
|
Vacuum hose No.1
|
|
11
|
Vacuum hose No.2
|
|
12
|
Vacuum pipe
|
|
13
|
Water pipe No.1
|
|
14
|
Insulator No.2
|
|
15
|
Air hose
|
|
16
|
Bracket
|
|
17
|
Water pipe No.2
|
|
18
|
Insulator No.3
|
|
19
|
Oil pipe No.3
|
|
20
|
Oil hose
|
|
21
|
Oil pipe No.2
|
