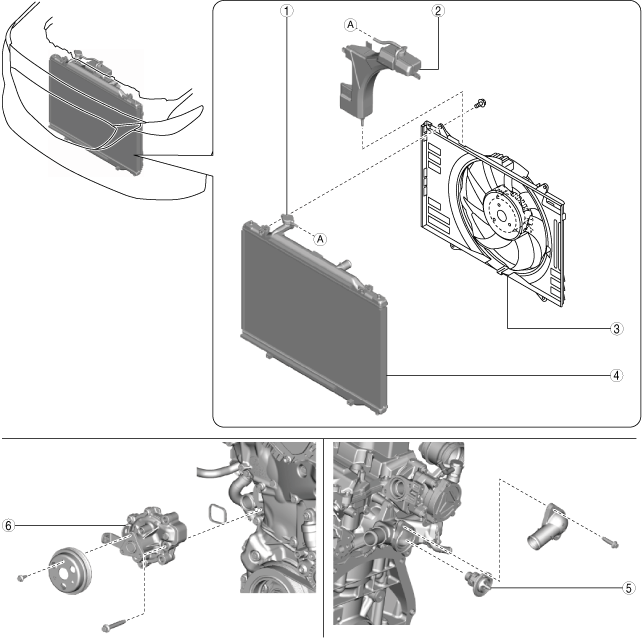

COOLING SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0112q5800100

ac9uuw00009734

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.5T].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.5T].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3	Cooling fan component (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.5T].)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.5T].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See THERMOSTAT INSPECTION [SKYACTIV-G 2.5T].)
6	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
