RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0112q5801400

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.1 and No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

4.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5.  Remove the air cleaner, air hose and fresh-air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

7.  Remove the cooling fan component. (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

8.  Remove the charge air cooler inlet hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

9.  Remove the charge air cooler outlet hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

10.  Disconnect the oil hoses from the radiator. (If equipped) (See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL].)

ac9uuw00006452

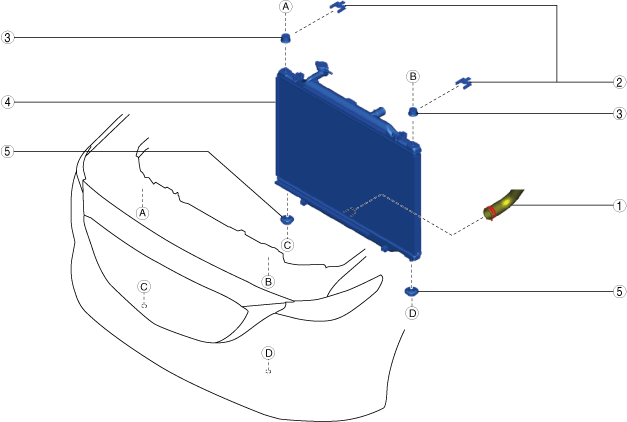

11.  Remove in the order indicated in the table.

12.  Install in the reverse order of removal.

13.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

14.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

15.  Inspect the ATF level. (If oil hoses has been disconnected) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [GW6A-EL, GW6AX-EL].)

ac9uuw00006453

Upper Mount Rubber Bracket Removal Note

Caution

•  To prevent damage to the upper mount rubber bracket tab, do not apply excessive force.

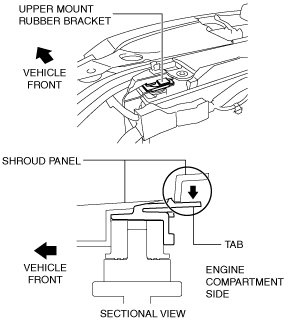

1.  While pressing down the upper mount rubber bracket tab lightly in the direction of the arrow shown in the figure, pull out the upper mount rubber bracket toward the vehicle rear.

am6xuw00006697

2.  Remove the upper mount rubber bracket.

Radiator Removal Note

1.  Remove the wiring harness clips shown in the figure.

ac9uuw00006454

ac9uuw00006455

2.  To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.

3.  Lift the radiator and remove it from the radiator installation holes on the shroud panel.

4.  Move the radiator and condenser to the engine side.

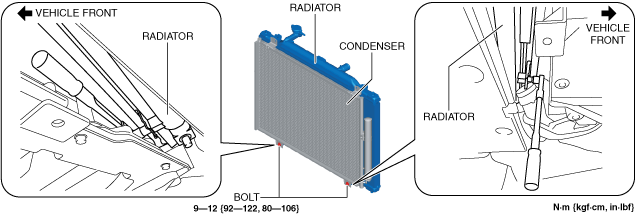

5.  Remove the two bolts (lower side) which secure the condenser to the radiator.

ac9uuw00006456

6.  Remove the two bolts (upper side) which secure the condenser to the radiator.

ac9uuw00006457

7.  Remove the radiator from above the engine compartment.
