FUEL SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]
id0114q4800100

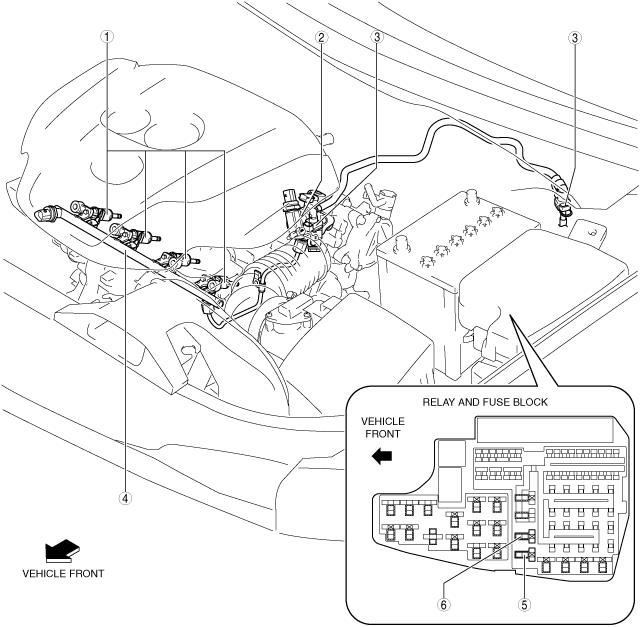

Engine Compartment Side
ac9uuw00009315
|
|
1
|
Fuel injector
|
|
2
|
High pressure fuel pump
|
|
3
|
Quick release connector
|
|
4
|
Fuel distributor
|
|
5
|
Fuel pump relay
(See RELAY INSPECTION.)
|
|
6
|
Fuel injector relay
(See RELAY INSPECTION.)
|
Fuel Tank Side
2WD
Taiwan
ac9wzw00005729
|
|
1
|
Fuel tank
|
|
2
|
Quick release connector
|
|
3
|
Fuel pump unit
|
|
4
|
Breather hose
|
|
5
|
Fuel-filler pipe
|
|
6
|
Joint hose
|
|
7
|
Non-return valve
|
|
8
|
Fuel filter (high-pressure)
|
|
9
|
Fuel pump control module
|

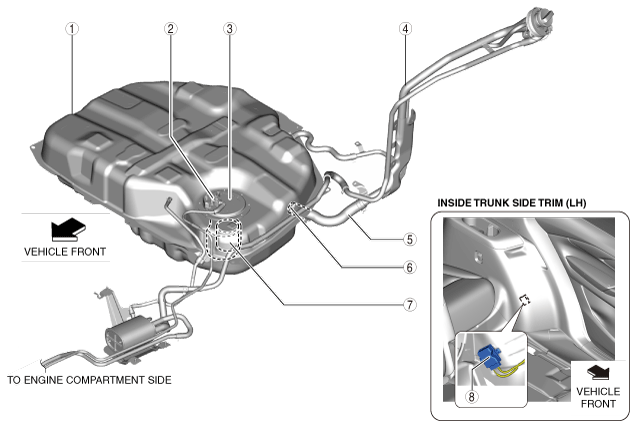

Except Taiwan
ac9wzw00005730
|
|
1
|
Fuel tank
|
|
2
|
Quick release connector
|
|
3
|
Fuel pump unit
|
|
4
|
Fuel-filler pipe
|
|
5
|
Joint hose
|
|
6
|
Non-return valve
|
|
7
|
Fuel filter (high-pressure)
|
|
8
|
Fuel pump control module
|

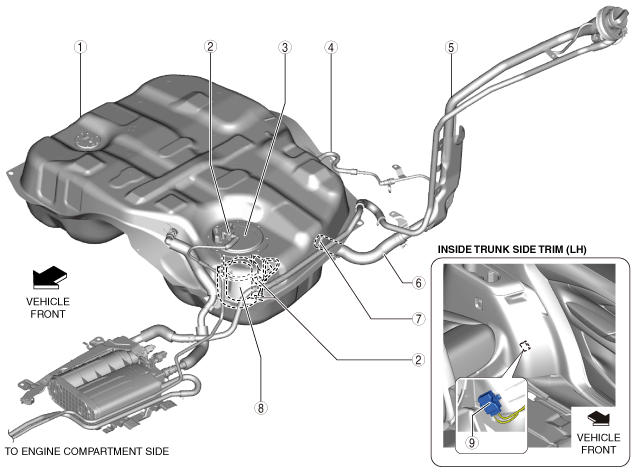

4WD
Taiwan
ac9wzw00005731
|
|
1
|
Fuel tank
|
|
2
|
Quick release connector
|
|
3
|
Fuel pump unit
|
|
4
|
Breather hose
|
|
5
|
Fuel-filler pipe
|
|
6
|
Joint hose
|
|
7
|
Non-return valve
|
|
8
|
Fuel filter (high-pressure)
|
|
9
|
Fuel pump control module
|

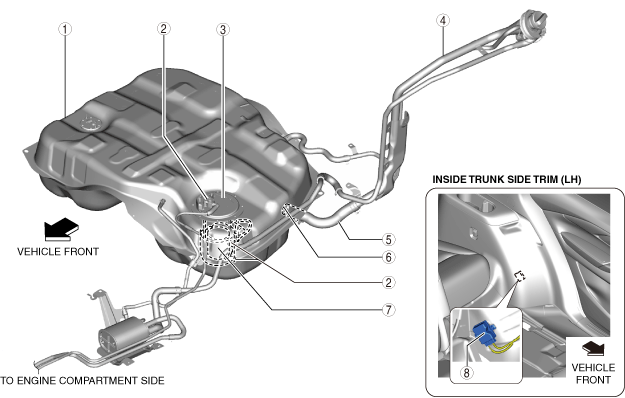

Except Taiwan
ac9wzw00005732
|
|
1
|
Fuel tank
|
|
2
|
Quick release connector
|
|
3
|
Fuel pump unit
|
|
4
|
Fuel-filler pipe
|
|
5
|
Joint hose
|
|
6
|
Non-return valve
|
|
7
|
Fuel filter (high-pressure)
|
|
8
|
Fuel pump control module
|
