HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
id0114q4801400
-
Warning
-
• Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "Fuel Line Safety Procedure" to prevent the fuel from spraying.
-
? Fuel may cause irritation if it comes in contact with skin and eyes.
? If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
• A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
-
Caution
-
• Do not disassemble the high pressure fuel pump.
• Do not damage the sealing surface or the lock part of the fuel pipe.
• Damage or deformation to the end of the high pressure line pipe may cause fuel leakage.
• Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
1. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5T].)
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4. Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5. Remove the battery. (See BATTERY REMOVAL/INSTALLATION.)
6. Remove the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

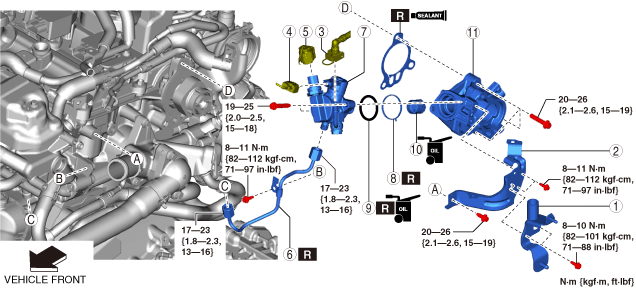

7. Remove in the order indicated in the table.
-
Note
-
• Only when the high pressure fuel pump is removed, the rear housing does not have to be removed.
8. Install in the reverse order of removal.
9. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.5T].)
10. Complete the “Fuel Leakage Inspection After High Pressure Fuel Pump Installation”. (See Fuel Leakage Inspection After High Pressure Fuel Pump Installation.)
|
1
|
Air pipe bracket
|
|
2
|
Protector
|
|
3
|
Quick release connector
|
|
4
|
High pressure fuel pump connector
|
|
5
|
Low fuel pressure sensor/fuel temperature sensor connector
|
|
6
|
High pressure fuel pipe
|
|
7
|
High pressure fuel pump
|
|
8
|
Seal rubber
|
|
9
|
O-ring
|
|
10
|
Tension collar
|
|
11
|
Rear housing
|
Protector Removal Note
1. Remove the clip from the protector.
2. Remove the ground cable from the protector.
3. Remove the protector.
High Pressure Fuel Pipe Removal Note
-
Caution
-
• When removing the high pressure fuel pipe, the end of the high pressure fuel pipe may be damaged because the clearance between the high pressure fuel pump and the high pressure fuel pipe is small. Be very careful when handling the end of the high pressure fuel pipe so as not to damage it.
• If the high pressure fuel pump is removed with the high pressure fuel pipe installed, the high pressure fuel pipe and fuel distributor may be damaged because of the excessive force caused by the spring force of the high pressure fuel pump. The high pressure fuel pipe and fuel distributor must be replaced if they are damaged. Always remove the high pressure fuel pipe before removing the high pressure fuel pump.
1. Remove the high pressure fuel pipe.
Rear Housing Removal Note
1. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION.)
2. Disconnect the turbocharger air outlet pipe from the dynamic pressure turbo. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION.)
4. Remove the exhaust CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5. Remove the ECT sensor No.1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6. Remove the rear housing.
Rear Housing Installation Note
-
Note
-
• After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

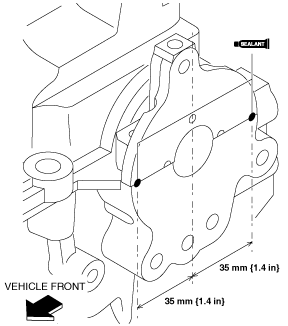

1. Apply silicone sealant to the areas shown in the figure.
-
Thickness
-
3.0—7.0 mm {0.12—0.27 in}
2. Install the rear housing.
-
Tightening torque
-
20—26 N·m {2.1—2.6 kgf·m, 15—19 ft·lbf}
3. Install the ECT sensor No.1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4. Install the exhaust CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5. Install the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION.)
6. Connect the turbocharger air outlet pipe to the dynamic pressure turbo. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7. Install the battery tray. (See BATTERY REMOVAL/INSTALLATION.)
High Pressure Fuel Pump Installation Note
1. Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION.)

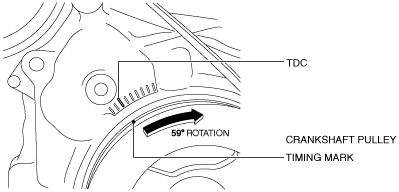

2. Rotate the crankshaft approx. 59 degrees from TDC of cylinder No.1.
3. Insert the high pressure fuel pump into the rear housing.
4. Press in the high pressure fuel pump until the O-ring cannot be seen.
5. Temporarily tighten the high pressure fuel pump installation bolt on one side until its head contacts the high pressure fuel pump.
6. Tighten the high pressure fuel pump installation bolt which is not tightened in Step 4
-
Tightening torque
-
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}
7. Tighten the high pressure fuel pump installation bolt which was tightened in Step 4.
-
Tightening torque
-
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}
High Pressure Fuel Pipe Installation Note
-
Caution
-
• Damage or deformation to the end of the high pressure fuel pipe may cause fuel leakage. When installing the high pressure fuel pipe to the high pressure fuel pump, be very careful while handling the end of the high pressure fuel pipe.
• If parts are exposed to fuel, their function may be decreased or a fire may occur. Always wipe off any leaked fuel using a clean rag.
• Do not let foreign materials enter into the high pressure fuel pipe.
• Install a new high pressure fuel pipe because it cannot be reused.
1. Temporarily tighten the nuts on both ends.
2. Temporarily tighten the high pressure fuel pipe bracket installation bolt.
3. Tighten the nuts on both ends.
-
Tightening torque
-
17—23 N·m {1.8—2.3 kgf·m, 13—16 ft·lbf}
4. Tighten the high pressure fuel pipe bracket installation bolt.
-
Tightening torque
-
8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
Protector Installation Note
1. Install the protector.
-
Tightening torque
-
A: 8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
B: 20—26 N·m {2.1—2.6 kgf·m, 15—19 ft·lbf}
2. Install the ground cable to the protector.
-
Tightening torque
-
8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
3. Install the clip to the protector.
Fuel Leakage Inspection After High Pressure Fuel Pump Installation
1. Verify that the high pressure fuel pump is assembled securely.
2. Verify that there is no fuel leakage around the high pressure fuel pump.
