WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD]

id0312008004a1

Special Service Tool (SST)

49 T028 301

Dust boot installer

49 W027 003

Bearing installer

49 W032 310

Support block

Caution

• Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1. Switch the ignition ON (engine off).

2. Release the electric parking brake.

3. Switch the ignition off.

4. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

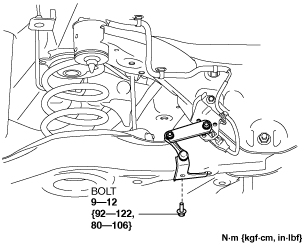

6. When working on the left side of the vehicle, disconnect the auto leveling sensor link. (With auto leveling sensor)

ac4ccw00000643

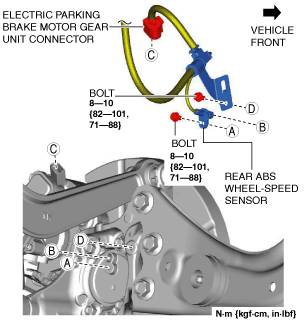

7. Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing.

ac9uuw00008035

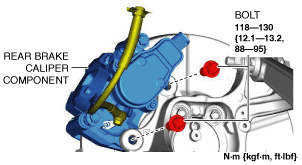

8. Remove the rear brake caliper component installation bolts.

ac9uuw00008036

9. Remove the rear brake caliper component and suspend it out of the way using a cable.

ac9uuw00008037

10. Remove the rear disc plate. (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.)

11. Remove in the order indicated in the table.

12. Install in the reverse order of removal. (See Suspension Links Installation Note.)

13. Perform the headlight auto leveling system initial setting. (With auto leveling sensor) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

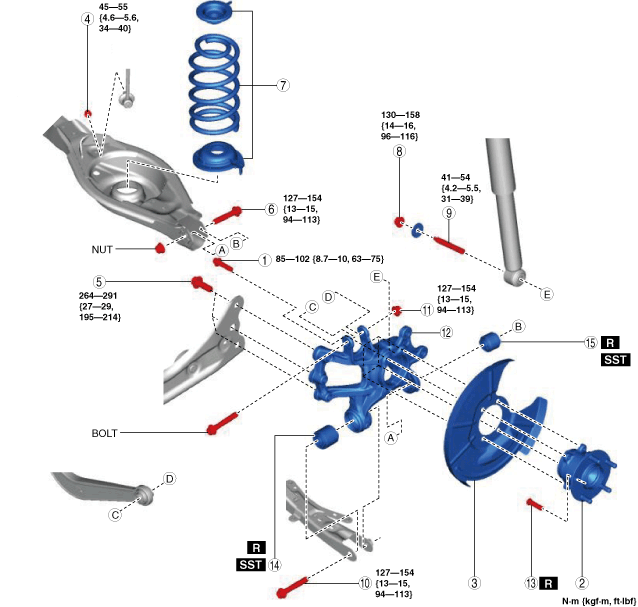

ac9uuw00008842

1	Bolt (wheel hub)
2	Wheel hub component
3	Dust cover
4	Rear stabilizer control link lower side nut
5	Rear trailing link installation bolt (See REAR TRAILING LINK REMOVAL/INSTALLATION.)
6	Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note.)
7	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
8	Rear shock absorber lower nut
9	Stud bolt
10	Rear lateral link outer bolt (See REAR LATERAL LINK REMOVAL/INSTALLATION.)
11	Nut (rear upper arm outer side) (See REAR UPPER ARM REMOVAL/INSTALLATION [2WD].)
12	Hub support

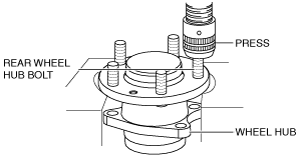

13	Rear Wheel hub bolt (See Rear wheel Hub Bolt Removal Note.) (See Rear wheel Hub Bolt Installation Note.)
