VACUUM PUMP REMOVAL/INSTALLATION

id041100803600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  Air hose

•  Air cleaner cover

•  Air cleaner element

•  Fresh-air duct

•  Air cleaner case

•  Air inlet pipe

4.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION.)

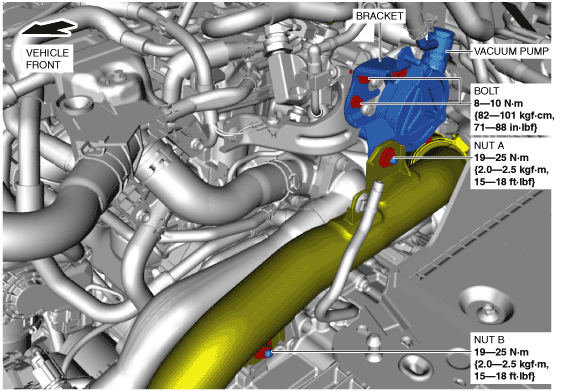

5.  Remove the bolts and nut A.

ac9uuw00009627

6.  Remove the bracket.

7.  Remove nut B.

8.  Pinch open the clamps using pliers and disconnect the vacuum hoses from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D.].) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D.].)

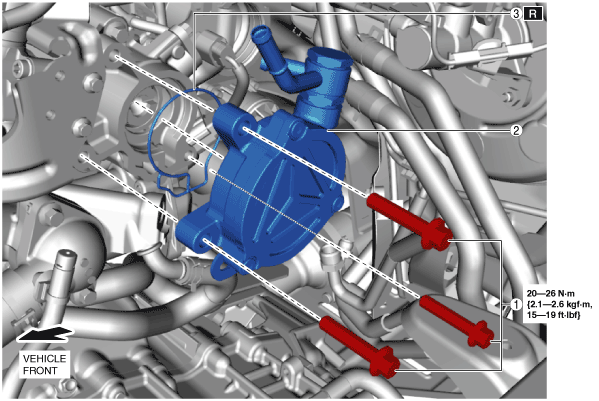

9.  Remove in the order shown in the table.

10.  Install in the reverse order of removal.

ac9uuw00009628

Vacuum Pump Removal Note

1.  When removing the vacuum pump, place a rag under the installation surface of the vacuum pump so that engine oil does not get on other parts.

2.  Remove the vacuum pump.

Vacuum Pump and O-ring Installation Note

1.  Rotate the vacuum pump by hand to drain the remainder of the engine oil in the vacuum pump.

2.  Degrease the O-ring installation groove and installation surface.

3.  Install the new O-ring to the vacuum pump.

4.  Install the vacuum pump.
